Ref 1123352 · Bycon

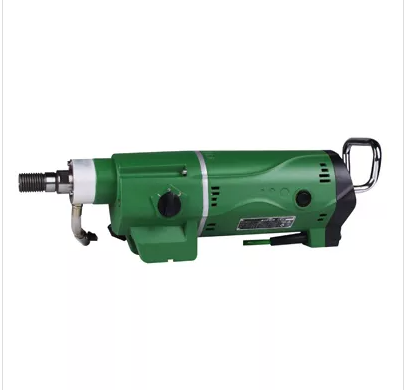

Bycon Wet drilling motor DMP-352

Rig-mounted wet core drill motor for heavy-duty drilling in concrete, asphalt and stone, drilling up to 402 mm once fixed to a drill stand. The stand is sold separately: Bycon lists the DSP-352, DSP-500 and DSP-2000 for this motor. A three-speed gearbox sets speed to bit diameter, an LCD screen reads temperature, voltage and current live, and a PRCD (a portable RCD) covers current leakage. Magnesium alloy housing and an oil-bath gearbox. 1-1/4 in UNC spindle. 3300 W, 230 V, 16 A / 50 Hz, 13.5 kg motor only. Bycon DMP-352, part 1123352.

875.84 € EUR 875.84 EUR 1,077.28 ex VATinc VAT 875.84 € EUR 875.84 EUR 1,077.28

In stock - collect from Dublin 10 today, or delivery in 2 to 3 working days
  • Brand - Bycon
  • Power
  • Weight
  • Max Drilling Diameter
  • Spindle Thread
  • Speed
  • Plug
Add to basket
Buy now
Delivery in 2 to 3 working days on stocked lines
Collect from the counter, Kylemore Park North, Dublin 10
Ring 01 889 9000 - the counter, Mon to Fri 8:00 to 17:00. Ask if you are unsure about fitment.
Contact Us
SPECIFICATION
Power3.3 kW
Weight13.5 kg
Max Drilling Diameter402 mm
Spindle ThreadUNC 1-1/4"
Speed350/700/1100 rpm
Plug32 A 3-pin
Bycon
Power : 3.3 kW
Weight : 13.5 kg
Max Drilling Diameter : 402 mm
Spindle Thread : UNC 1-1/4"
Speed : 350/700/1100 rpm
Plug : 32 A 3-pin
THE JOB IT DOES

Rig-mounted wet core drill motor for heavy-duty drilling in concrete, asphalt and stone, drilling up to 402 mm once fixed to a drill stand. The stand is sold separately: Bycon lists the DSP-352, DSP-500 and DSP-2000 for this motor. A three-speed gearbox sets speed to bit diameter, an LCD screen reads temperature, voltage and current live, and a PRCD (a portable RCD) covers current leakage. Magnesium alloy housing and an oil-bath gearbox. 1-1/4 in UNC spindle. 3300 W, 230 V, 16 A / 50 Hz, 13.5 kg motor only. Bycon DMP-352, part 1123352.
