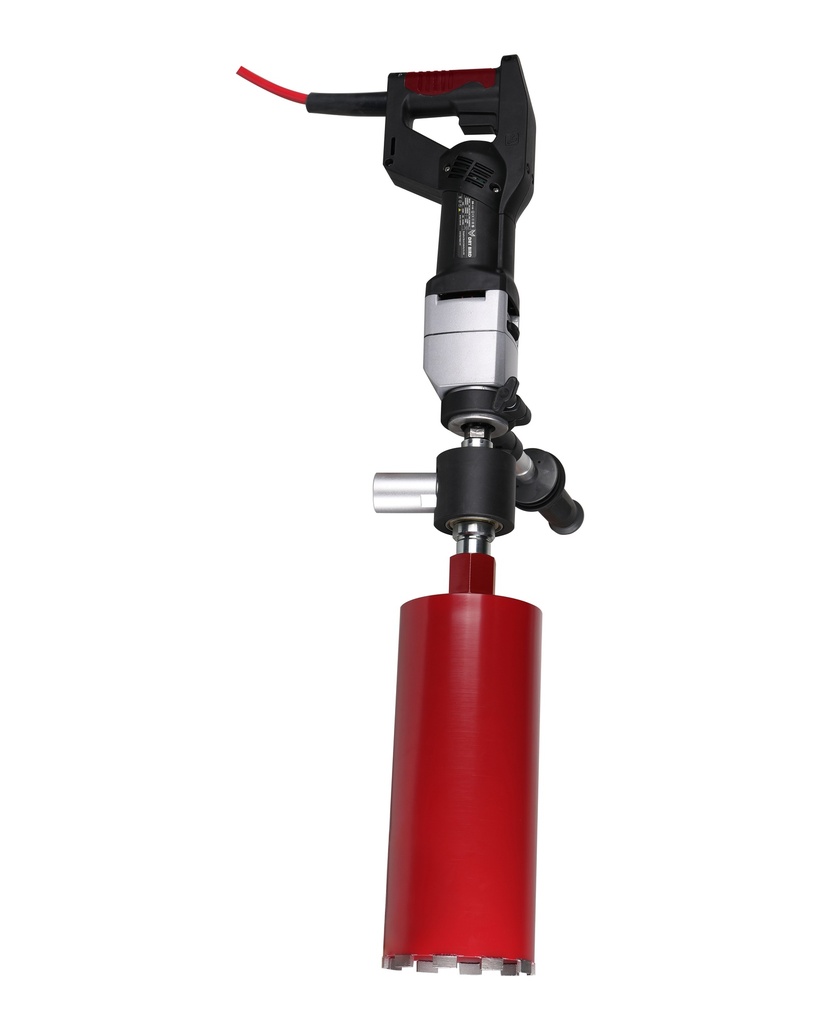

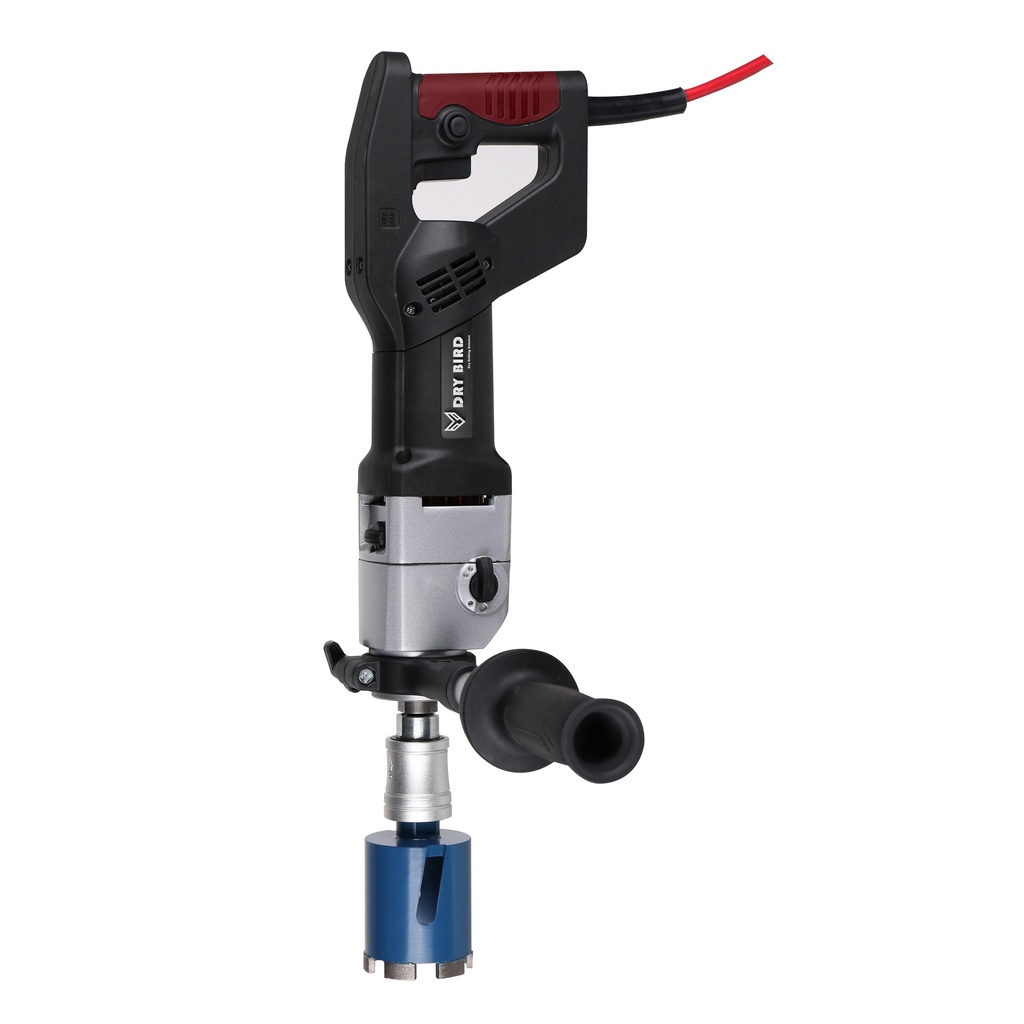

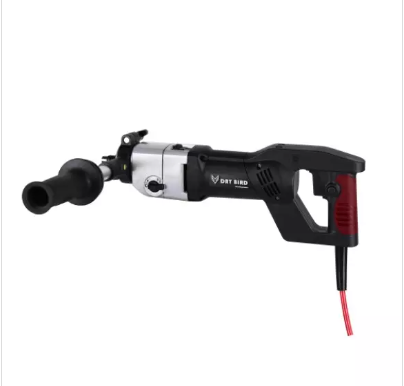

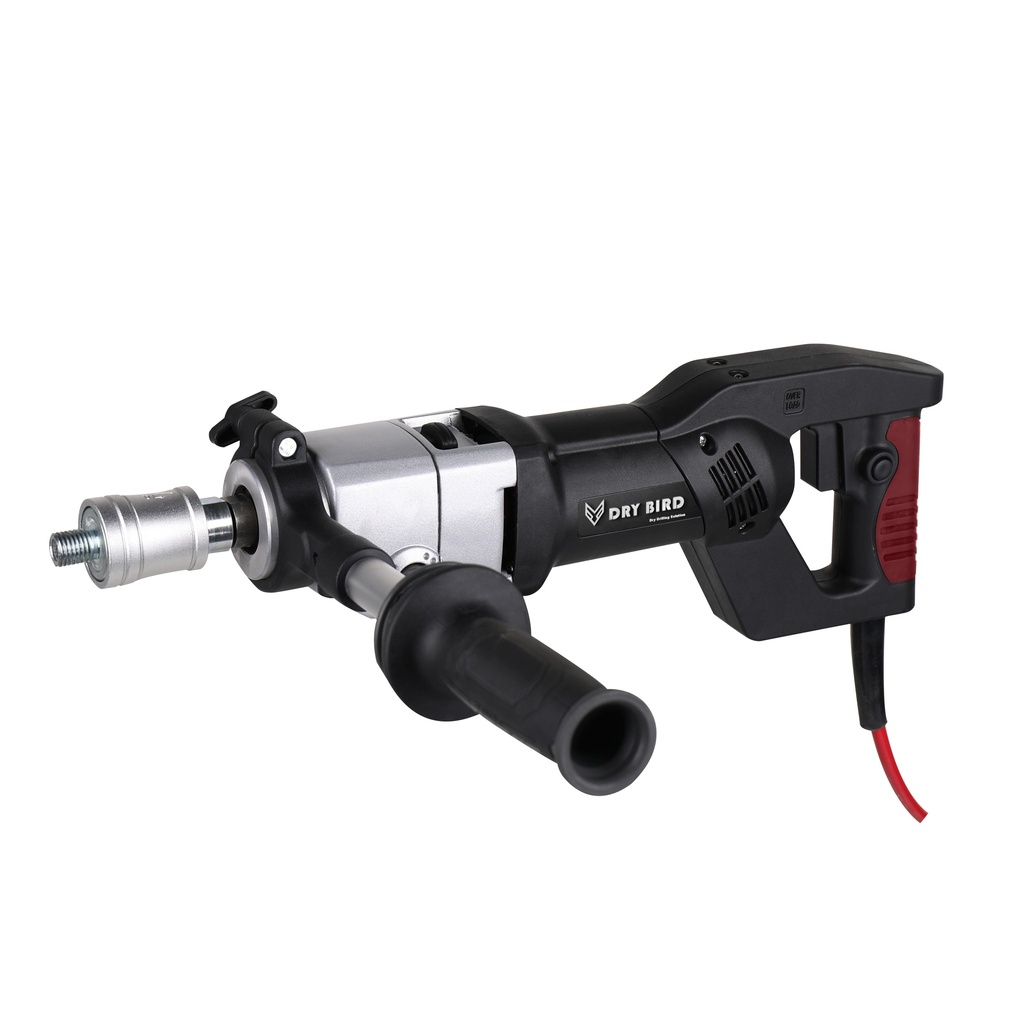

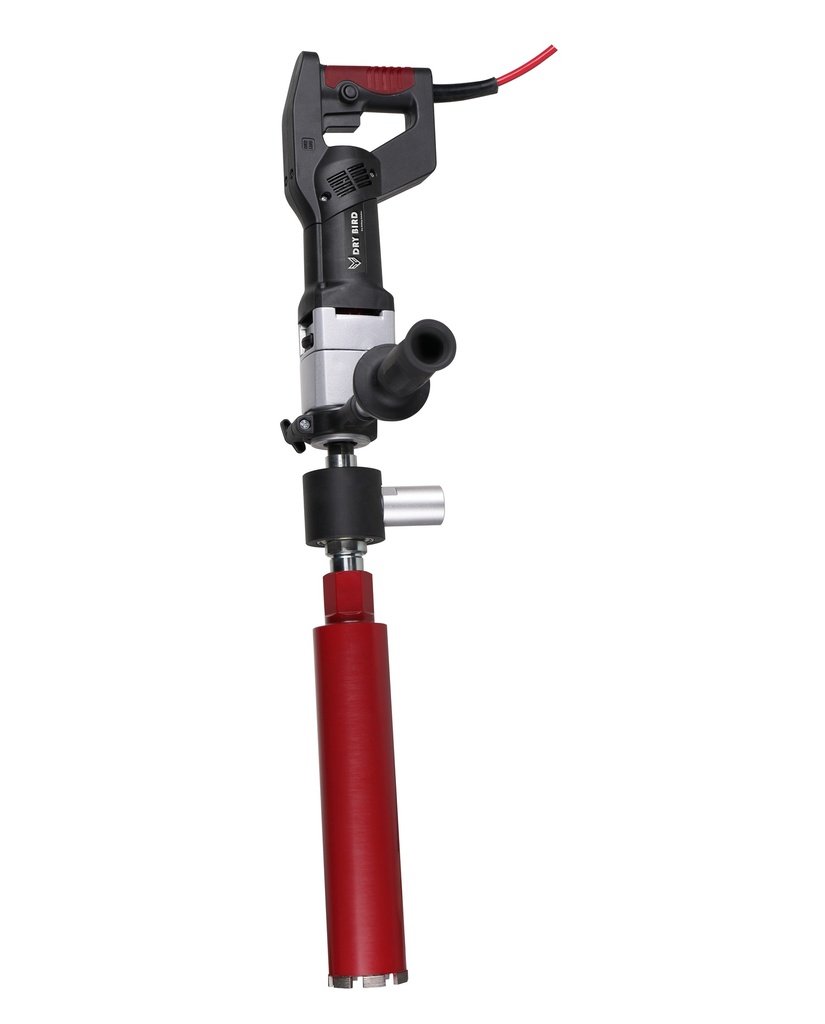

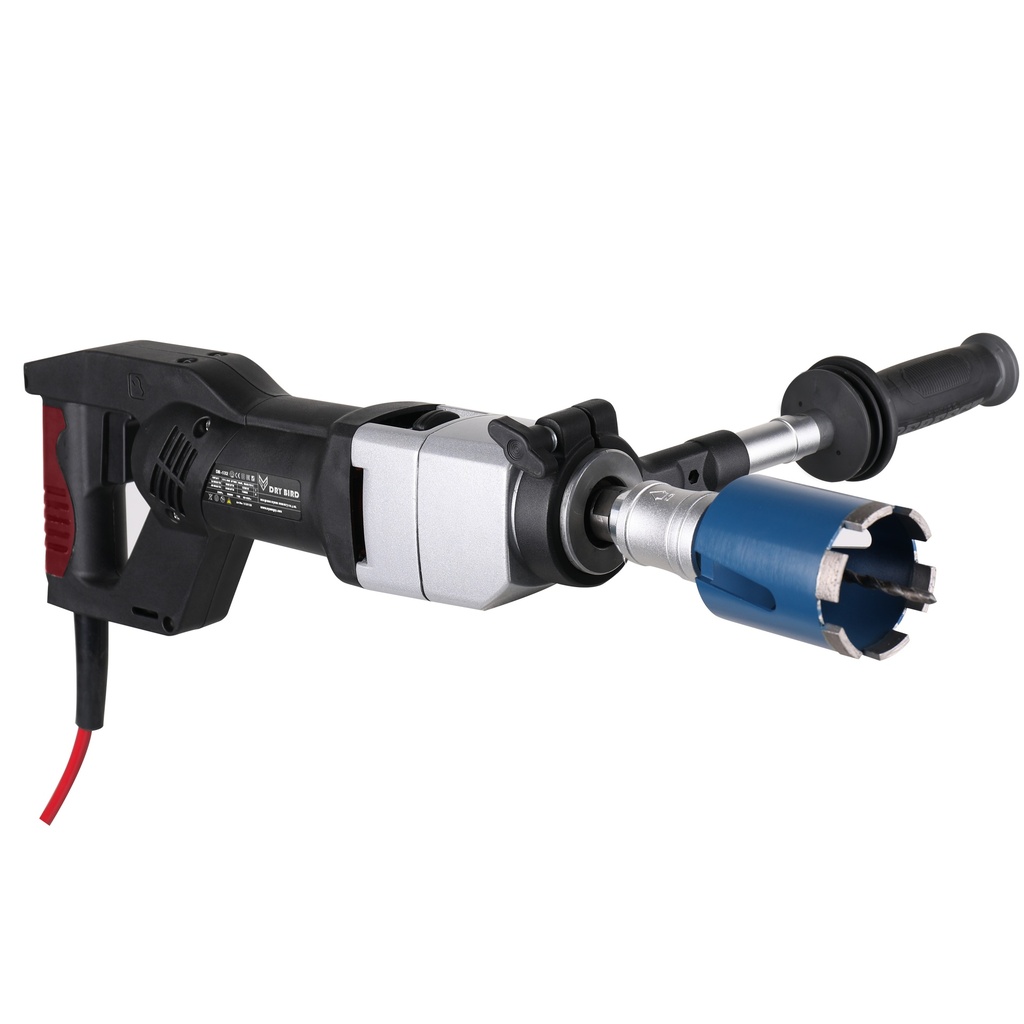

Brushless Micro percussion drill motor DB-132

Hangzhou Bycon brushless micro-percussion drill motor DB-132 is designed for discerning contractors and wholesalers in professional markets. 1500W powerful but compact, suitable for dry core drilling.



Main features:

1. 2-mode for option: micro-percussion mode and normal mode for option.

2. Two operation methods: only 4.2KG, free-hand operation. 2 gear speed for option.

3. Adjustable front handle: easy to loosen handle.

4. Soft start for protection: this model has Soft Start inside. The motor will start gradually under its control, after that the motor up to no load speed in a few seconds. The other function is to avoid current from over-loading in drilling when core bits meet hard material.

5. Mechanical slipping clutch equipped: to ensure safety as much as possible.

Art number 1223132
Power 1500W
Voltage 230V 110V
Current 10A 15A
Frequency 50HZ 60HZ
Max Drilling Diameter 132 mm
No load impact speed 24000/480000BPM
Spindle thread M18
N.W 4.2KG
