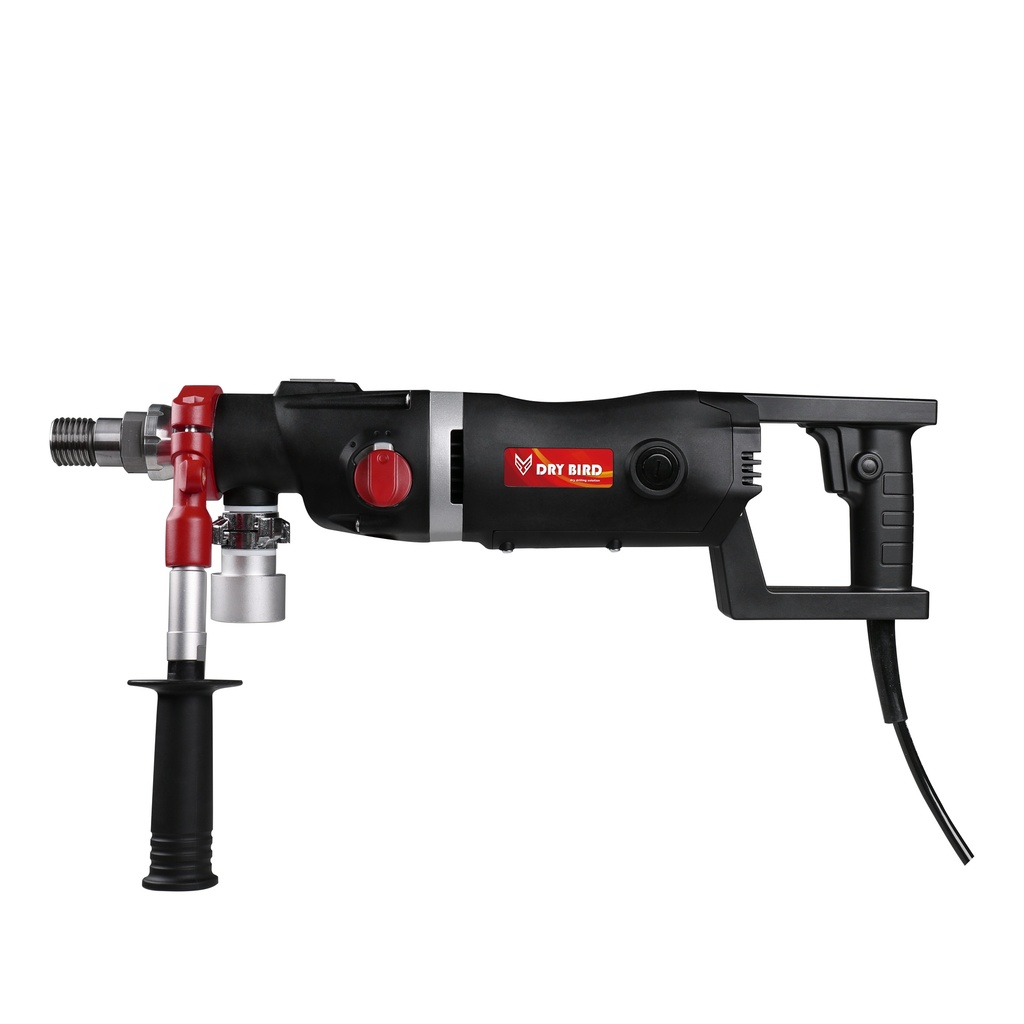

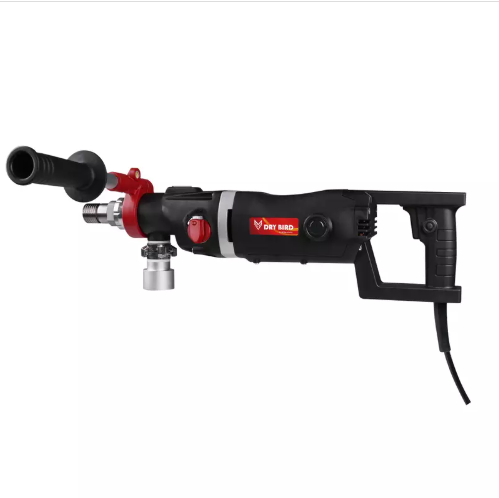

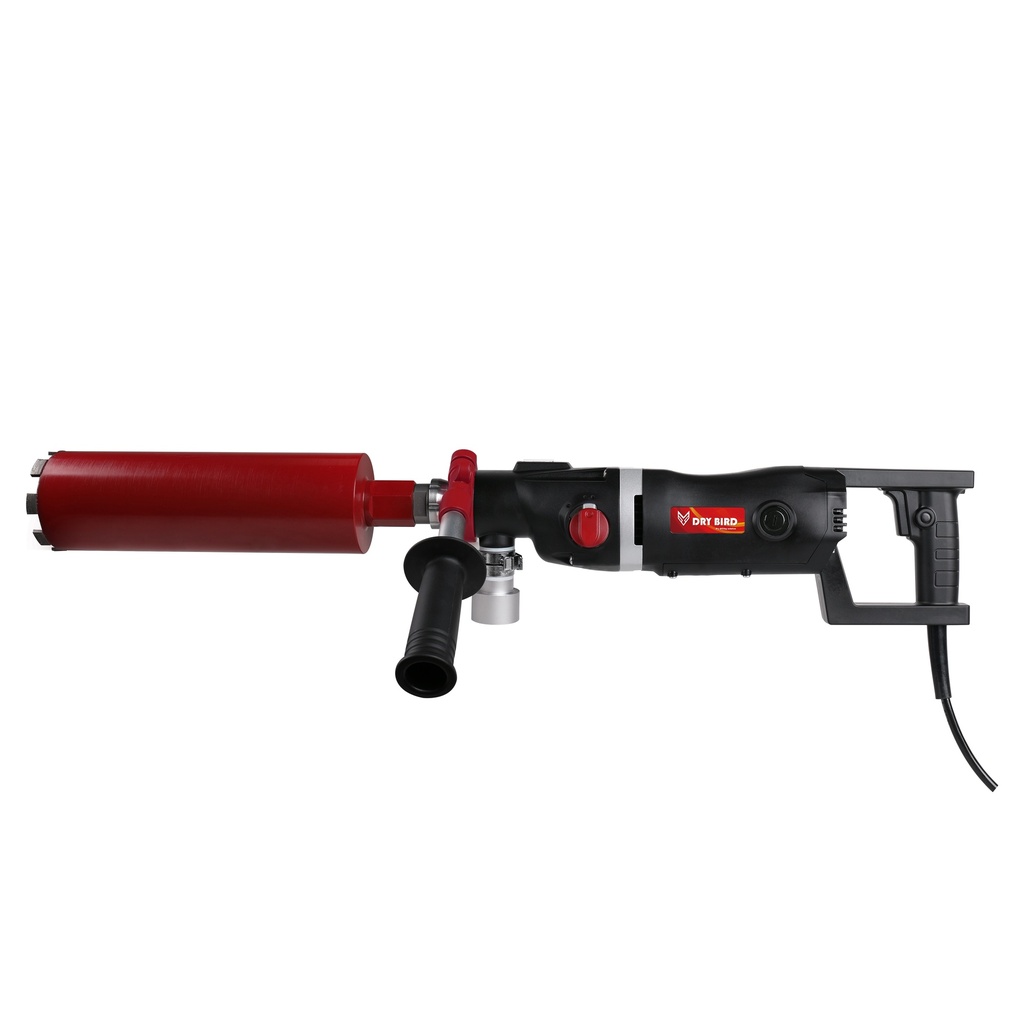

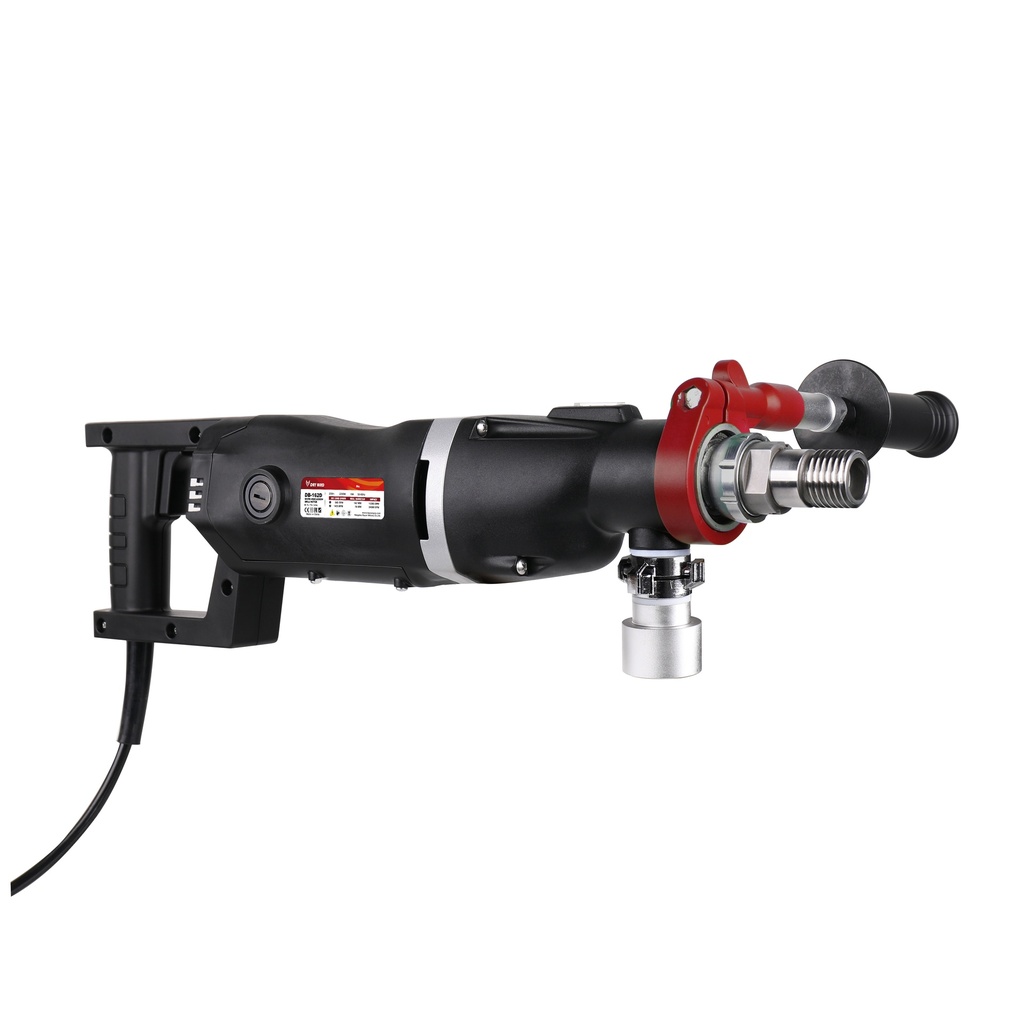

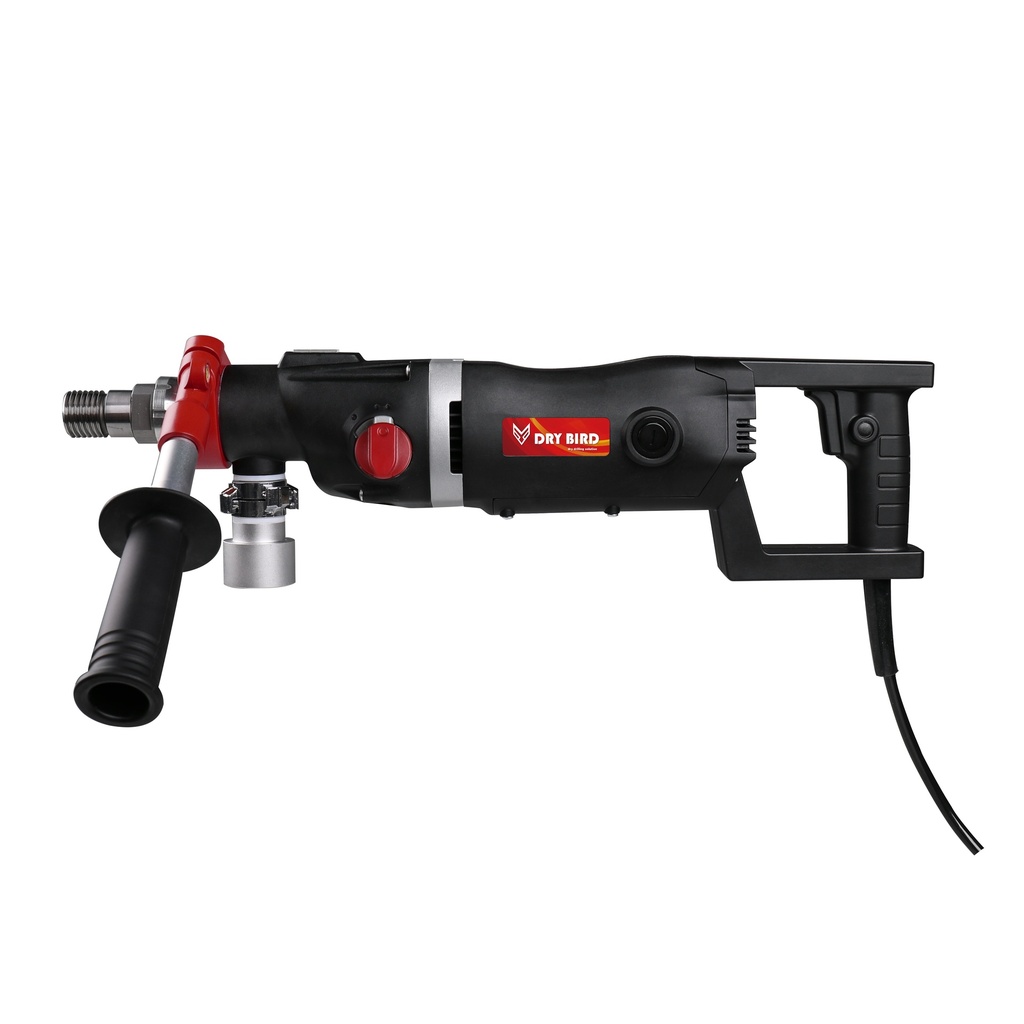

Micro percussion DB-162D

Hangzhou Bycon core drill motor DB-162P /D is designed for discerning contractors and wholesalers in professional markets. 2200W powerful but compact, suitable for wet or dry core drilling. 1 1/4" UNC (M) and 1/2" BSP (F) spindle can accept most core drill bit in European markets.



Main features:

1. 2-speed gear regulation: variable speed for drilling concrete core in various diameter.

2. Two operation methods: only 6.5KG, free-hand operation. Or fix to drill rig through 60mm bracket.

3. Adjustable front handle: easy to loosen handle.

4. Soft start for protection: this model has Soft Start inside. The motor will start gradually under its control, after that the motor up to no load speed in a few seconds. The other function is to avoid current from over-loading in drilling when core bits meet hard material.

5.. Mechanical slipping clutch equipped: to ensure safety as much as possible.

6. External carbon brushes: operators can change carbon brushes easily, no need to disassemble motor.

7. Magnesium shell: to reduce weight and would be more comfortable for the operator.

Art number 1223162
Power 2200W
Voltage 220V 120V
Current 10A 15A
Frequency 50HZ 60HZ
Max Portable Drilling Diameter 162 mm
Max Drilling Diameter with Stand 202 mm
No load impact speed 16000/38000RPM
The Portable Drilling Diameter of 1,2 Gear 162 mm / 82 mm
The Drilling Diameter with stand of 1,2 Gear 202 mm / 102 mm

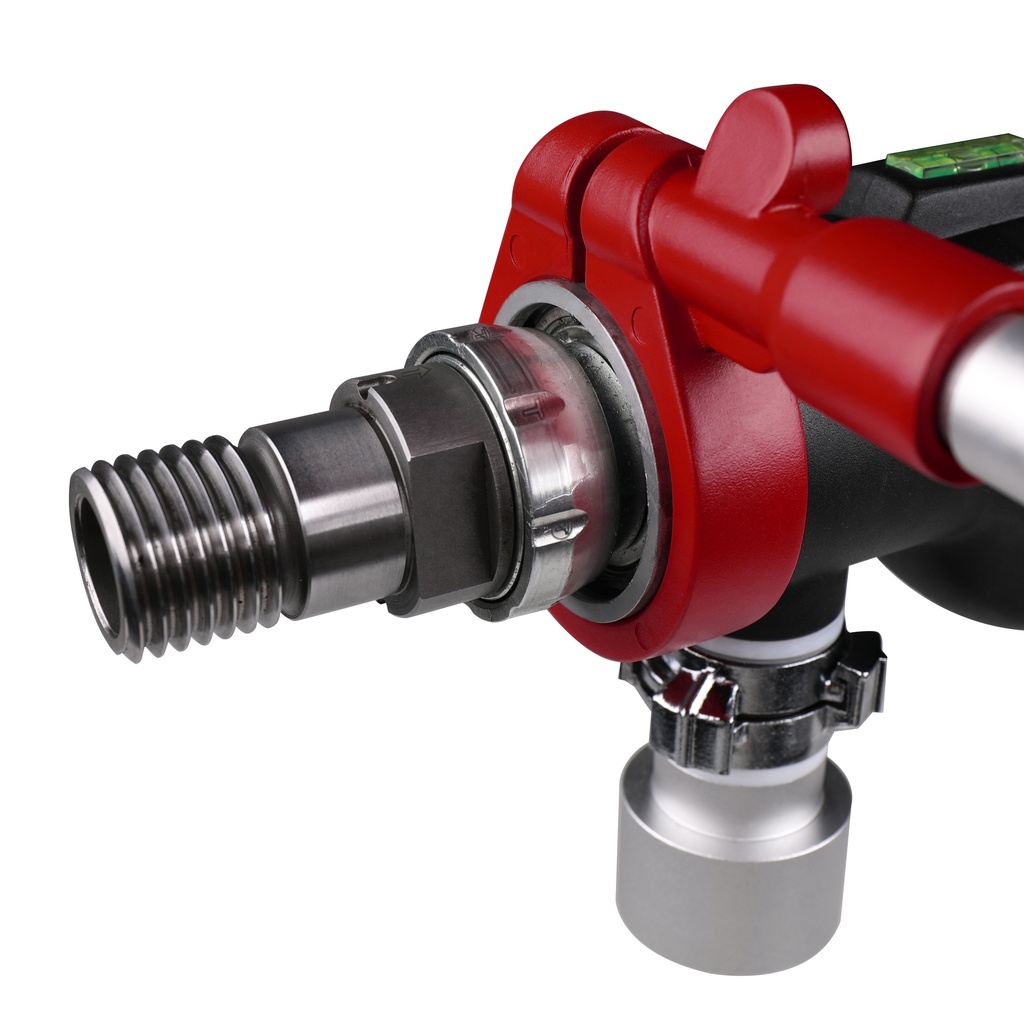

Spindle thread 1-1/4" UNC & 1/2" G
N.W 6.5KG
Drill Stand for Option DSP-162 DSP-252
Packing List 635*460*215 mm
