Ref 1224202 · Bycon

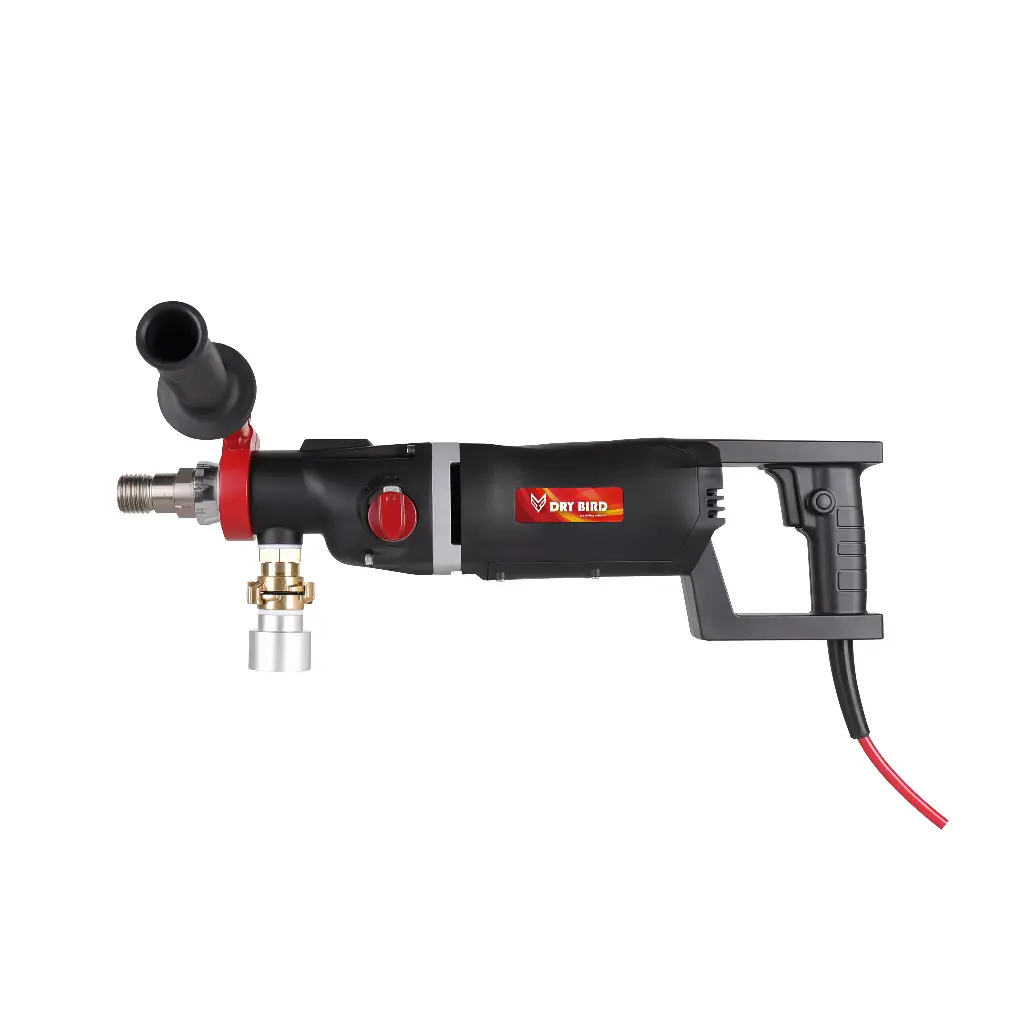

Bycon Hand Held Core Drill Motor DB-202D

Brushless core drill motor for wet or dry drilling in concrete, drilling up to 202 mm on gear one and 102 mm on gear two with the stand fitted. Soft start and overload protection cover the motor, and a mechanical slip clutch protects the operator if a bit binds. 1-1/4 in UNC and 1/2 in G spindle fits most core bits sold in Europe. 2600 W, 220 V / 50 Hz or 120 V / 60 Hz, 6.05 kg, fits the DBS-162 stand. Bycon DB-202D, part 1224202.

665.49 € EUR 665.49 EUR 818.55 ex VATinc VAT 665.49 € EUR 665.49 EUR 818.55

In stock - collect from Dublin 10 today, or delivery in 2 to 3 working days
  • Brand - Bycon
  • Power
  • Weight
  • Max Drilling Diameter
  • Spindle Thread
  • Impact Rate
  • Speed
  • Plug
Add to basket
Buy now
Delivery in 2 to 3 working days on stocked lines
Collect from the counter, Kylemore Park North, Dublin 10
Ring 01 889 9000 - the counter, Mon to Fri 8:00 to 17:00. Ask if you are unsure about fitment.
Contact Us
SPECIFICATION
Power2.6 kW
Weight6.05 kg
Max Drilling Diameter202 mm
Spindle ThreadUNC 1-1/4" & 1/2" GAS
Impact Rate18200/40300 bpm
Speed700/1550 rpm
Plug32 A 3-pin
Bycon
Power : 2.6 kW
Weight : 6.05 kg
Max Drilling Diameter : 202 mm
Spindle Thread : UNC 1-1/4" & 1/2" GAS
Impact Rate : 18200/40300 bpm
Speed : 700/1550 rpm
Plug : 32 A 3-pin
THE JOB IT DOES

Brushless core drill motor for wet or dry drilling in concrete, drilling up to 202 mm on gear one and 102 mm on gear two with the stand fitted. Soft start and overload protection cover the motor, and a mechanical slip clutch protects the operator if a bit binds. 1-1/4 in UNC and 1/2 in G spindle fits most core bits sold in Europe. 2600 W, 220 V / 50 Hz or 120 V / 60 Hz, 6.05 kg, fits the DBS-162 stand. Bycon DB-202D, part 1224202.
