Ref 1223132

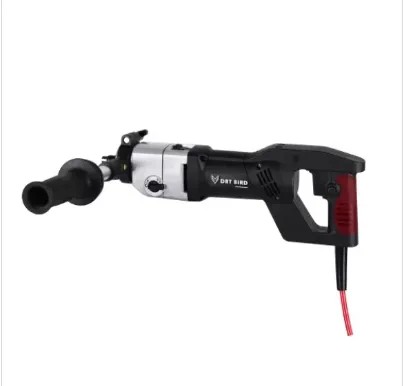

Bycon Brushless Micro percussion core drill motor DB-132

Hangzhou Bycon brushless micro-percussion drill motor DB-132 is designed for discerning contractors and wholesalers in professional markets. 1500W powerful but compact, suitable for dry core drilling.



Main features:

1. 2-mode for option: micro-percussion mode and normal mode for option.

2. Two operation methods: only 4.2KG, free-hand operation. 2 gear speed for option.

3. Adjustable front handle: easy to loosen handle.

4. Soft start for protection: this model has Soft Start inside. The motor will start gradually under its control, after that the motor up to no load speed in a few seconds. The other function is to avoid current from over-loading in drilling when core bits meet hard material.

5. Mechanical slipping clutch equipped: to ensure safety as much as possible.

Art number 1223132
Power 1500W
Voltage 230V 110V
Current 10A 15A
Frequency 50HZ 60HZ
Max Drilling Diameter 132 mm
No load impact speed 24000/480000BPM
Spindle thread M18
N.W 4.2KG

364.32 € EUR 364.32 EUR 448.11 ex VATinc VAT 364.32 € EUR 364.32 EUR 448.11

In stock - collect from Dublin 10 today, or delivery in 2 to 3 working days
  • Voltage
  • Power
  • Weight
  • Max Drilling Diameter
  • Spindle Thread
  • Impact Rate
  • Speed
  • Plug
Add to cart
Buy now
Delivery in 2 to 3 working days on stocked lines
Collect from the counter, Kylemore Park North, Dublin 10
Ring 01 889 9000 - the counter, Mon to Fri 8:00 to 17:00. Ask if you are unsure about fitment.
Contact Us
SPECIFICATION
Voltage110V
Power1.5 kW
Weight3.7 kg
Max Drilling Diameter132 mm
Spindle ThreadM18
Impact Rate24000/48000 bpm
Speed1500/3000 rpm
Plug16 A 3-pin
Voltage : 110V
Power : 1.5 kW
Weight : 3.7 kg
Max Drilling Diameter : 132 mm
Spindle Thread : M18
Impact Rate : 24000/48000 bpm
Speed : 1500/3000 rpm
Plug : 16 A 3-pin
