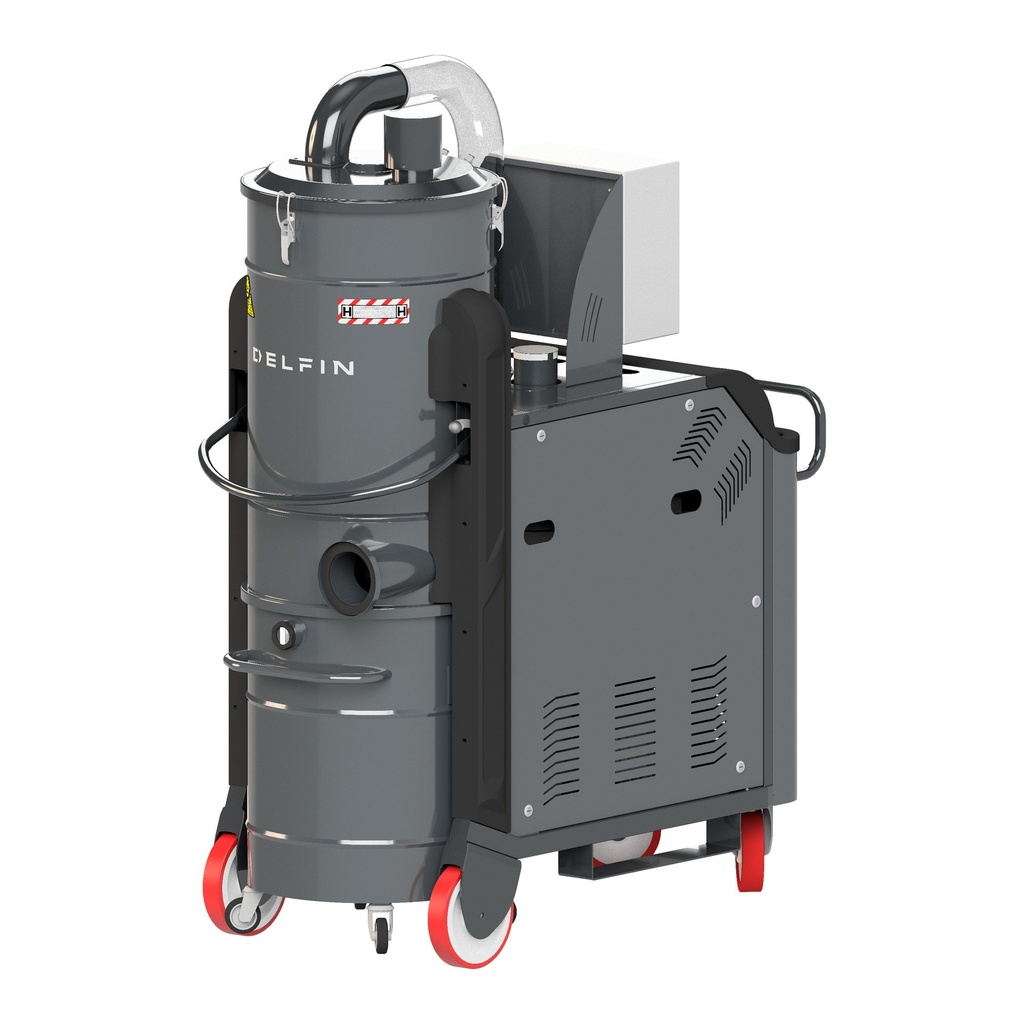

Delfin DG VL 125 Industrial Vacuum Cleaner

Brand
Voltage
Quantity
Sold Out

Description

A robust self clean, three-phase vacuum that is popular for collecting solids and more abrasive dust in heavy industries. Features a side channel blower, removable collection tank, performance indicator light, a pressure relief valve, fork lift intakes and ring bolt, and a self-clean filter shaker cleaning system. Powder coated steel construction for durability.

Features:
• Compact, portable and constructed with powder coated steel
• Side channel blower (continuous use / no maintenance up to 30,000 hours)
• Tangential inlet with cyclone filter protector
• Removable collection tank
• Performance indicator light
• Forklift intakes and ring bolt
• Pressure relief valve
• Large filter surface
• Self-clean filter shaker cleaning system

Technical Data
Voltage V - Hz 460 - 60 3~
Power HP (kW) 19.4 (14.5)
Electrical Protection IP Class 65
Continuous Water Lift inH20 (mmH2O) 108.3 (2750)
Max Airflow CFM (m³/h) 735.7 (1250)
Suction Inlet in. (mm) 5 (120)
Noise Level (EN ISO 3744) dB(A) 75
Capacity Gal. (L) 42 (160)
Dimensions (WxLxH) in. (cm) 71x30x79 (180x77x200)
Weight lb. (kg) 485 (220)
Primary Filter Type Star
Material - Efficiency IEC 60335-2-69 Antistatic Polyester - Class M
Filter Surface Area ft² (m²) 75 (7)
Air load on filter ft/min (m/h) 9.8 (157)
Cleaning system SELF-CLEAN
