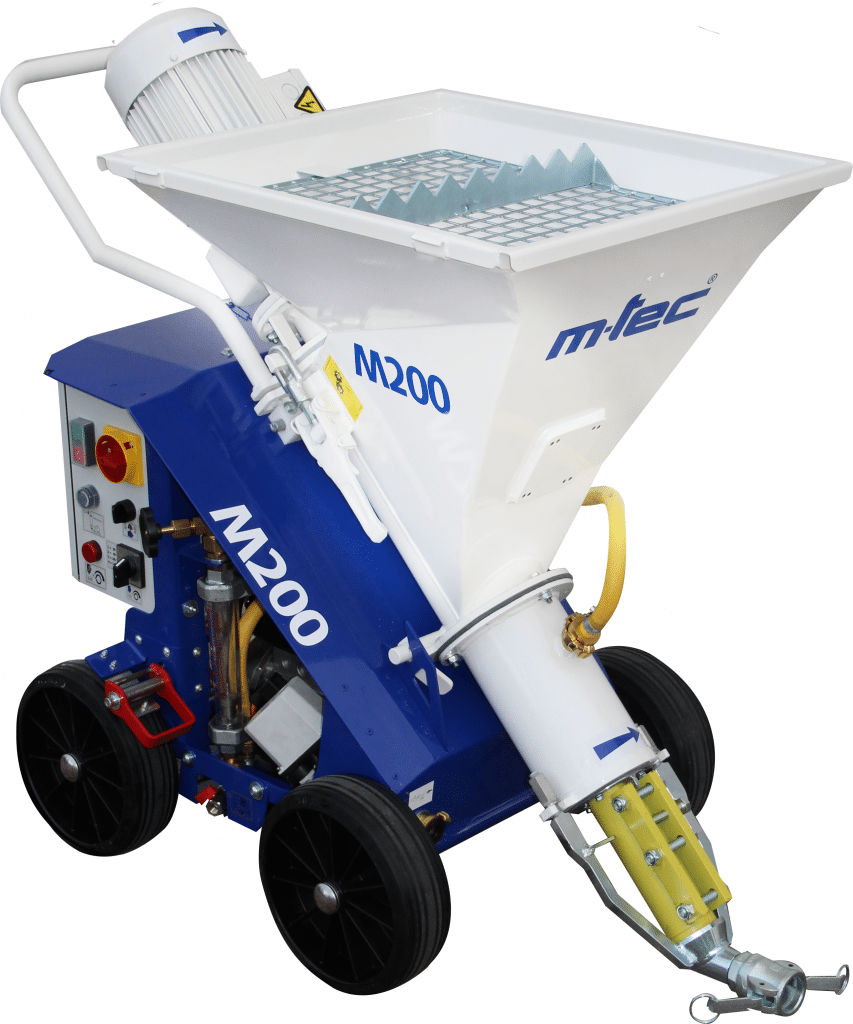

Image of m-tec M200 pump
Product information

m-tec M200 pump

€10,873.20

Quantity
Only 1 LEFT IN STOCK!

Description

The M200 raises the processing of thin-layer gypsum products to the next level – thus the creation of e.g. perfect plasterboard walls is child’s play. The M200 inspires by the lump-free dilution of gypsum products, especially for fillers. This brand new technology, enables a perfect finish of plasterboard in the shortest time. With a capacity of 0.5-2 m² per minute, the M200 clearly over-shines manual processing of gypsum products.

Specifications:

Standard delivery volume: ca. 13,0 l/min (depending on worm pump),
Conveying distance: bis zu 15m,
Conveying height: bis zu 5m,
Conveying pressure: bis zu 25 bar,
Pump motor: 2,2 kW,
Compressor: 1,1 kW ca. 230 l/min, 3,5 bar,
Electrical connection: 230 V 50 Hz 1 ph,
Fuse: 16A,
Connecting cable: 3 x 2,5 mm²,
Connector: 16A 3P 6h,
Water supply: ¾“ water hose with GEKA coupling, required water pressure/min. 1.8 bar while the machine is running,
Dimensions: ca. 1170 x 590 x 1060 mm,
Weight: ca. 114 kg.
