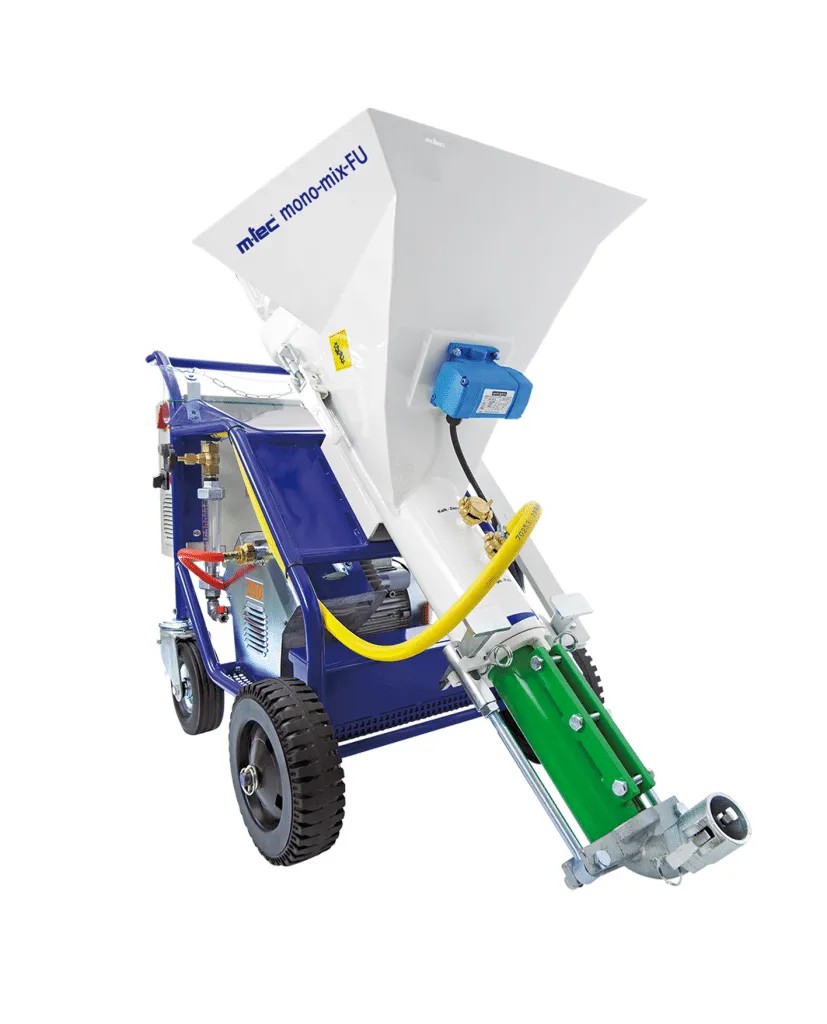

m-tec mono-mix pump

Thanks to its reliability, powerful drive and tried-and-
tested m-tec detailed solutions, this small but impressive mixing pump has enjoyed many years of popularity! The mono-mix is available in two versions: 230 Volt or 400 Volt. In the 230 Volt version a frequency converter ensures that optimum performance can be achieved at any time: this is a huge advantage on building sites with a 230V power supply, e.g. during refurbishment projects or interior work.


Our Specialist for:

adhesives dry
cement plasters
cementitious self- levelling
decorating plaster
finishing plasters
floor screed
flowing screeds
gypsum plaster
lime cement plaster
lime gypsum plaster
lime plaster
loam products dry
reinforcing and adhesive mortars
restoration plaster
self levelling products
structured and decorative renders
thin layer gypsum and cement products
Applications*

Construction chemicals
Rendering
Flooring
ETICS
Plastering
Renovating
recommended accessories*

Mortar hoses
Fine plaster spray gun
Adhesive gun
Rotors/Stators
After mixer
Vibrator
applicable Rotors/Stators*

Stator m-tec D8-2 self-adjusting Shore 62º
Rotor m-tec D8-2
Stator m-tec D8-1,5 mono-star Shore 63º
Rotor m-tec D8-1,5 mono-star
Rotor m-tec m-tec star
Rotor m-tec m-tec star
Rotor m-tec uni-star 0,5
Stator m-tec m-tec star self-adjusting Shore 71º
*for reference only.

Specifications:

Specifications mono-mix-FU
Mixing pump output: approx. 5-20 l/min
variable with other worm pumps
Conveying distance:* up to 20 m
Conveying height:* up to 10 m
Conveying pressure:* up to 20 bar
Drive motor: 3,0 kW
Compressed air supply: 1,1 kW, approx. 250 l/min, 4 bar
Electrical connection: 230 V, 60 Hz, 2 ph
Fuses: 20 A
Connecting cable: 3 x 2,5 mm²
Connector: Nema L6-20A, 3-pol
Water pump: TM61E, 230V 60 Hz
Water supply: 3/4“ water hose with GEKA coupling, required water pressure min. 2.5 bar while the machine is running
Dimensions: approx. 1430 x 670 x 1.150 mm
Weight: approx. 160 kg
