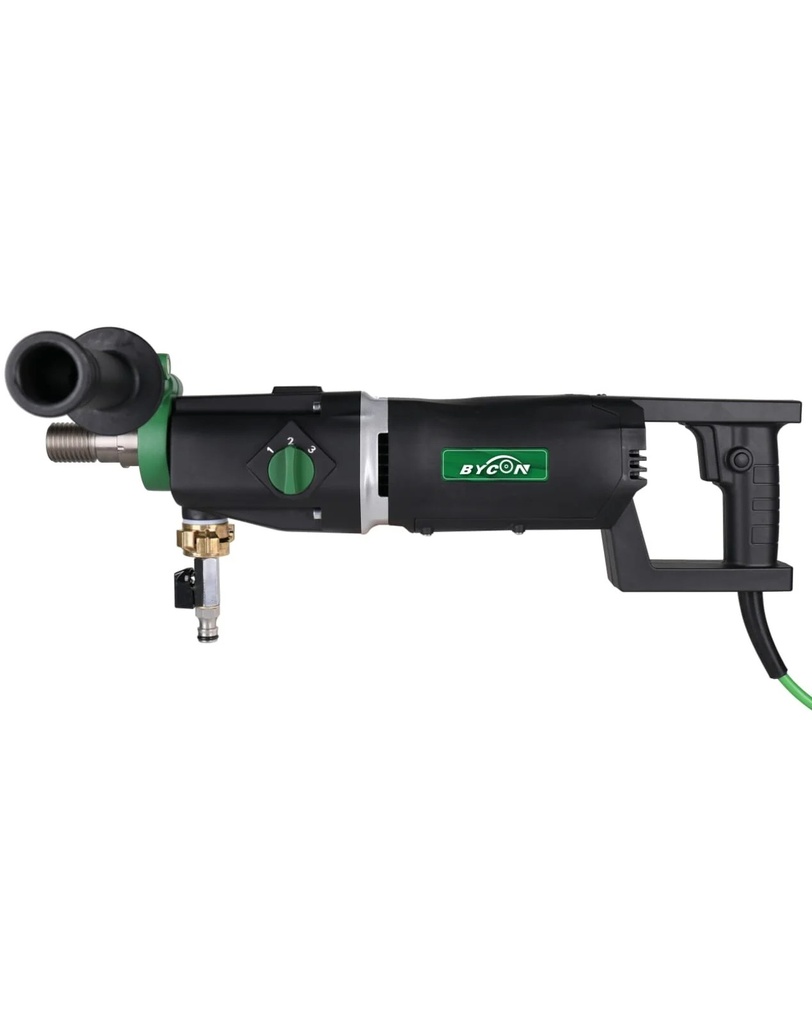

Bycon Hand Held Core Drill Motor DMP-202BD
Ref 1124202 · Bycon

Bycon Hand Held Core Drill Motor DMP-202BD

Key Features

Brushless Motor: High-efficiency design with reduced maintenance and extended lifetime
Smart LED Indicator: Provides alerts for overload, overheating, and carbon brush maintenance
3-Speed Gearbox: 510 / 1450 / 3000 rpm for controlled performance across a range of diameters
Handheld or Rig Use: Can be used freehand or mounted on DSP-162 / DSP-252 drill stands
High Torque Stability: Maintains consistent performance in reinforced concrete
Technical Specifications
Power Output: 2600 W
Voltage / Frequency: 220 V / 50 Hz or 120 V / 60 Hz
Current: 14 A (220 V) / 25 A (120 V)
No-Load Speeds (Gear 1 / 2 / 3): 510 / 1,450 / 3,000 rpm
Drilling Diameter (Gear 1 / 2 / 3): Ø202 mm / Ø132 mm / Ø76 mm
Max Drilling Diameter: Ø202 mm
Spindle Thread: 1¼″ UNC
Weight: 6.65 kg
Compatible Drill Stands: DSP-162 / DSP-252

640.00 € EUR 640.00 EUR 787.20 ex VATinc VAT 640.00 € EUR 640.00 EUR 787.20

In stock - collect from Dublin 10 today, or delivery in 2 to 3 working days
  • Brand - Bycon
  • Power
  • Weight
  • Max Drilling Diameter
  • Spindle Thread
  • Speed
  • Plug
Add to basket
Buy now
Delivery in 2 to 3 working days on stocked lines
Collect from the counter, Kylemore Park North, Dublin 10
Ring 01 889 9000 - the counter, Mon to Fri 8:00 to 17:00. Ask if you are unsure about fitment.
Contact Us
SPECIFICATION
Power2.6 kW
Weight6.65 kg
Max Drilling Diameter202 mm
Spindle ThreadUNC 1-1/4" & 1/2" GAS
Speed650/1450/3150 rpm
Plug32 A 3-pin
Bycon
Power : 2.6 kW
Weight : 6.65 kg
Max Drilling Diameter : 202 mm
Spindle Thread : UNC 1-1/4" & 1/2" GAS
Speed : 650/1450/3150 rpm
Plug : 32 A 3-pin
