Ref 1224202 · Bycon

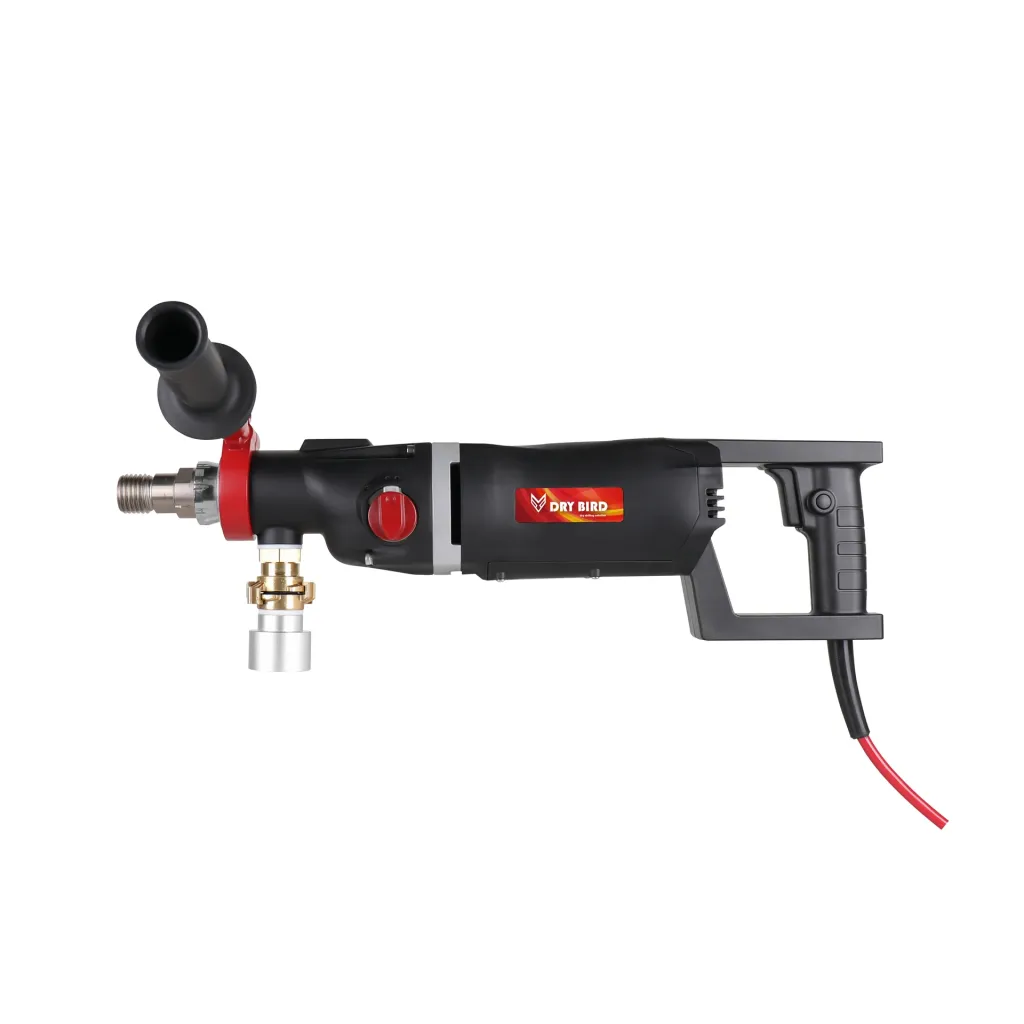

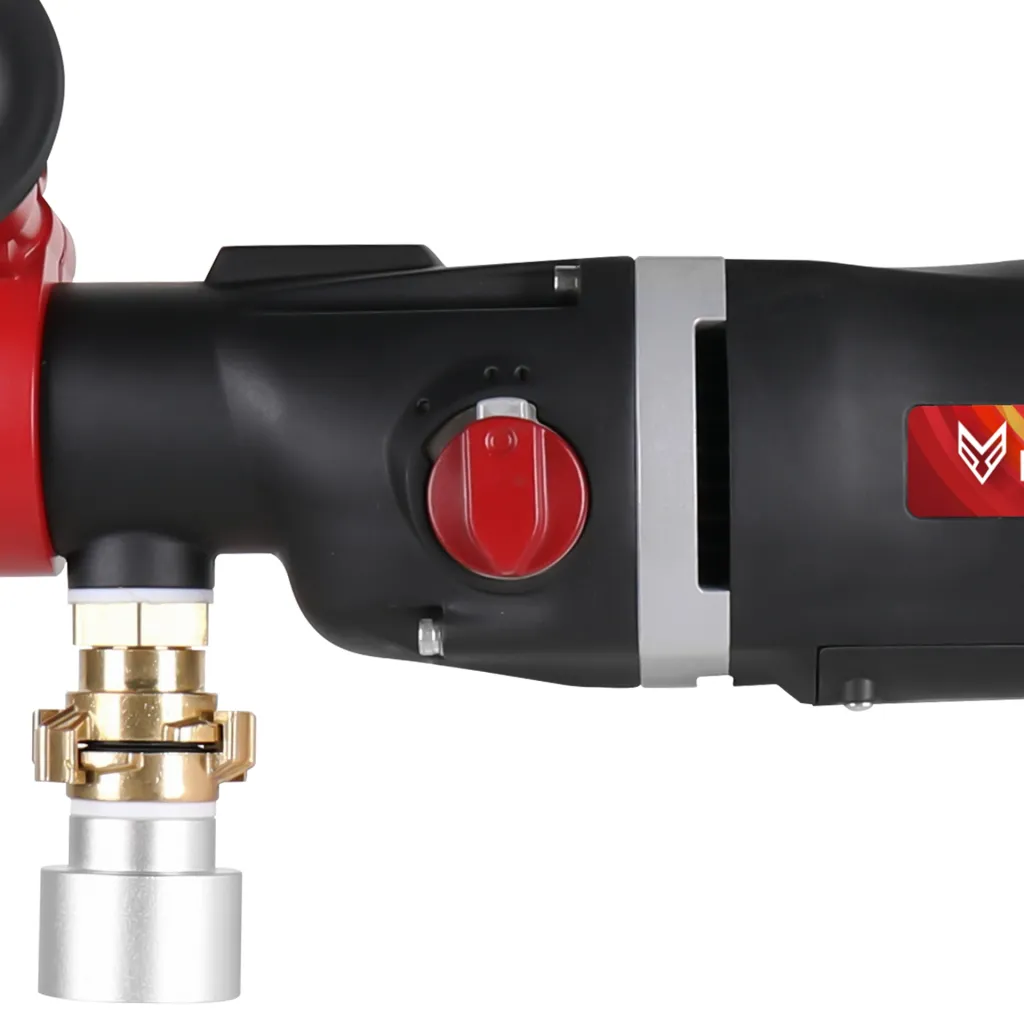

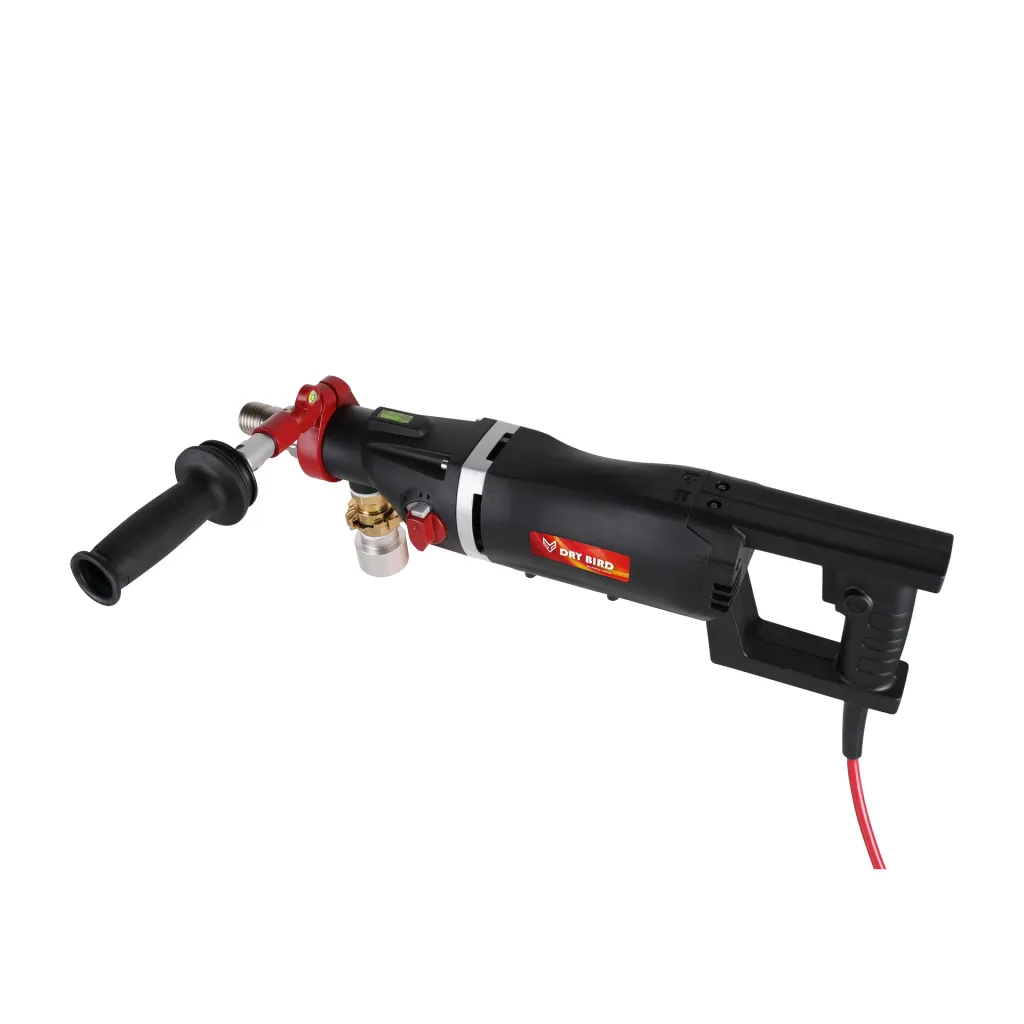

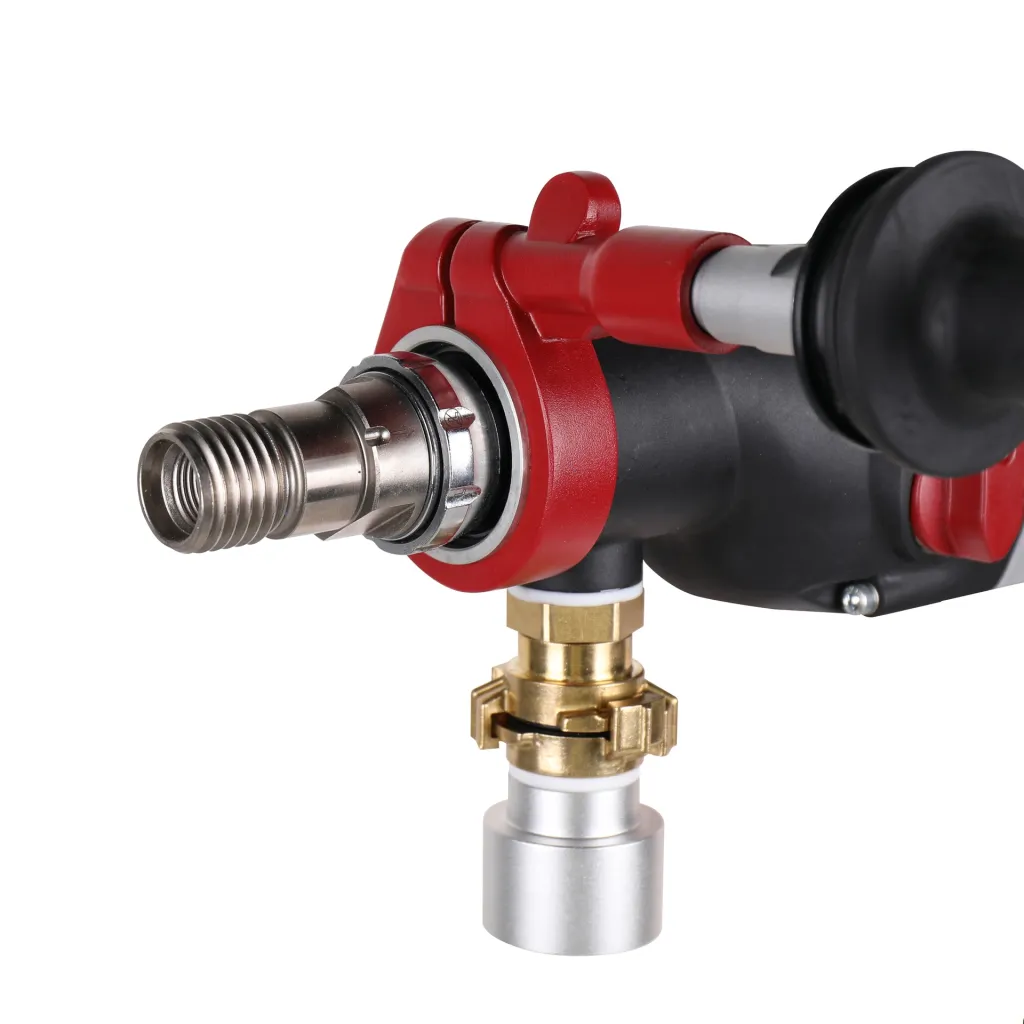

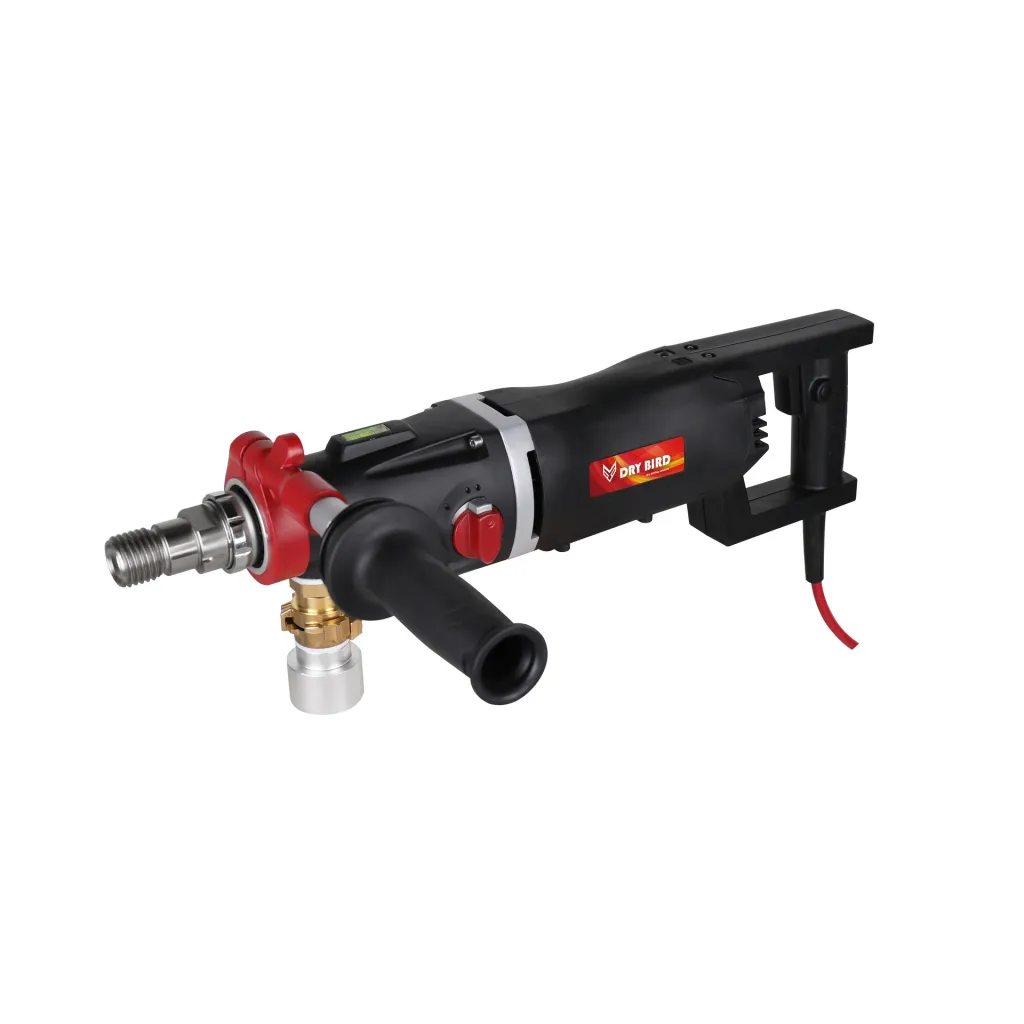

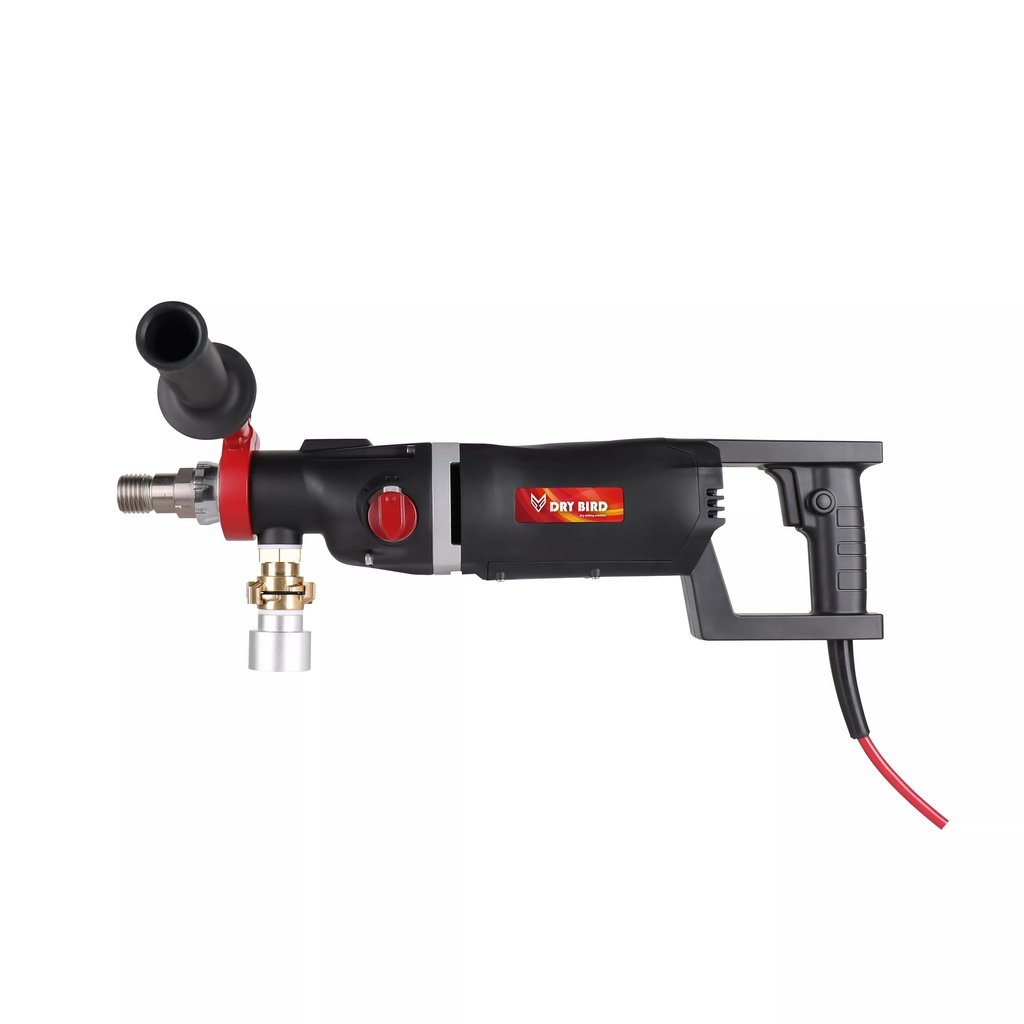

Bycon Hand Held Core Drill Motor DB-202D

A specially D designed heavy duty 2200W motor with 3 speed for dry and wet drilling in portable and mounted type optional up to 202mm, Smart LED indicator light exposes warning of overloading and carbon brush replacement.

Art number 1124162
Power 2200W
Voltage 220V 120V
Current 10A 15A
Frequency 50HZ 60HZ
Max Portable Drilling Diameter 162 mm
Max Drilling Diameter with Stand 202 mm
No load speed 650/1300/2600 RPM
The Portable Drilling Diameter of 1,2,3 Gear 162 mm / 82 mm / 42 mm
The Drilling Diameter with stand of 1,2,3 Gear 202 mm / 102 mm / 62 mm
Spindle thread 1-1/4" UNC & 1/2" G
N.W 7.5KG 7.9KGS
Drill Stand for Option DSP-162 DSP-252
Packing List 635*460*215 mm

665.49 € EUR 665.49 EUR 818.55 ex VATinc VAT 665.49 € EUR 665.49 EUR 818.55

In stock - collect from Dublin 10 today, or delivery in 2 to 3 working days
  • Brand - Bycon
  • Power
  • Weight
  • Max Drilling Diameter
  • Spindle Thread
  • Impact Rate
  • Speed
  • Plug
Add to basket
Buy now
Delivery in 2 to 3 working days on stocked lines
Collect from the counter, Kylemore Park North, Dublin 10
Ring 01 889 9000 - the counter, Mon to Fri 8:00 to 17:00. Ask if you are unsure about fitment.
Contact Us
SPECIFICATION
Power2.6 kW
Weight6.05 kg
Max Drilling Diameter202 mm
Spindle ThreadUNC 1-1/4" & 1/2" GAS
Impact Rate18200/40300 bpm
Speed700/1550 rpm
Plug32 A 3-pin
Bycon
Power : 2.6 kW
Weight : 6.05 kg
Max Drilling Diameter : 202 mm
Spindle Thread : UNC 1-1/4" & 1/2" GAS
Impact Rate : 18200/40300 bpm
Speed : 700/1550 rpm
Plug : 32 A 3-pin
