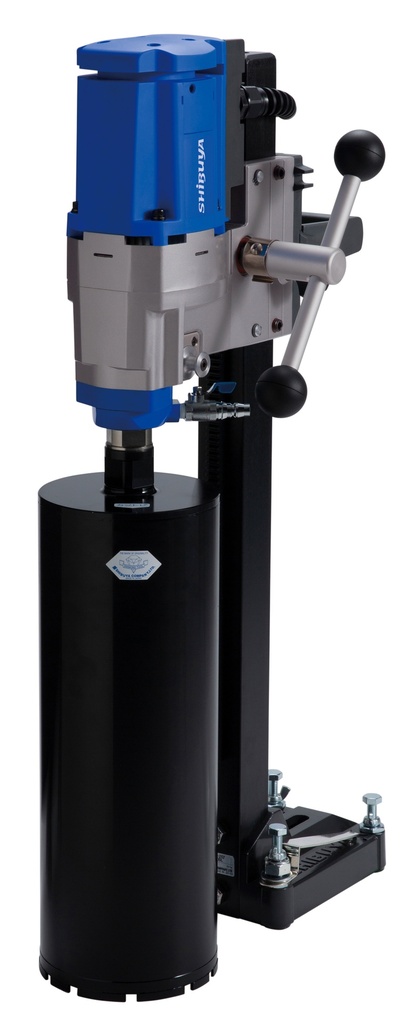

Shibuya Core Drill Complete - H1521 Motor and TS-165 Drill Stand, Carry Case Version

Rated Input 1,900 W (110V)
Voltage 110-120V
Speed 2
Spindle Revolutions at No Load 750/1,150 rpm (H1521 110-120V)
Spindle Revolutions at Rated Load 520/790 rpm (H1521 110-120V)
Spindle Thread UNC 1-1/4"
Weight H1521 w carriage block: 9.4 kg・TS-165(Case Ver.): 6.8 kg
Height 793 mm (Case Ver.)
Base Size 146 x 205 mm
Available Stroke 535 mm (Case Ver.)


Maximum Bit Capacity: 180 mm (7").

Description:
The TS-165 Drill Stand paired with the H1521 Motor is an ideal solution for small to medium-sized core drilling jobs, combining versatility and power for professional applications. This configuration includes a robust design for stability and precision. Key features include:


Two-Speed Motor: 750/1150 rpm, offering flexibility for various drilling tasks.
Built-in On/Off Switch with Motor Overload Protection: Ensures safety and extends motor lifespan.
Multi-position Water Swivel Inlet: Provides convenience during operation.
Right and Left Hand Feed Handle Positions: Accommodates user preference for ease of use.

Includes a Water Collector Ring: Ensures a clean and efficient drilling process.
Normal Stand Column: 1011 mm (40″) with 715 mm (28″) stroke.
50 mm (2″) Square Column: Provides stability during operation.
Tool Kit: Includes wrenches and Allen keys for maintenance and adjustments.

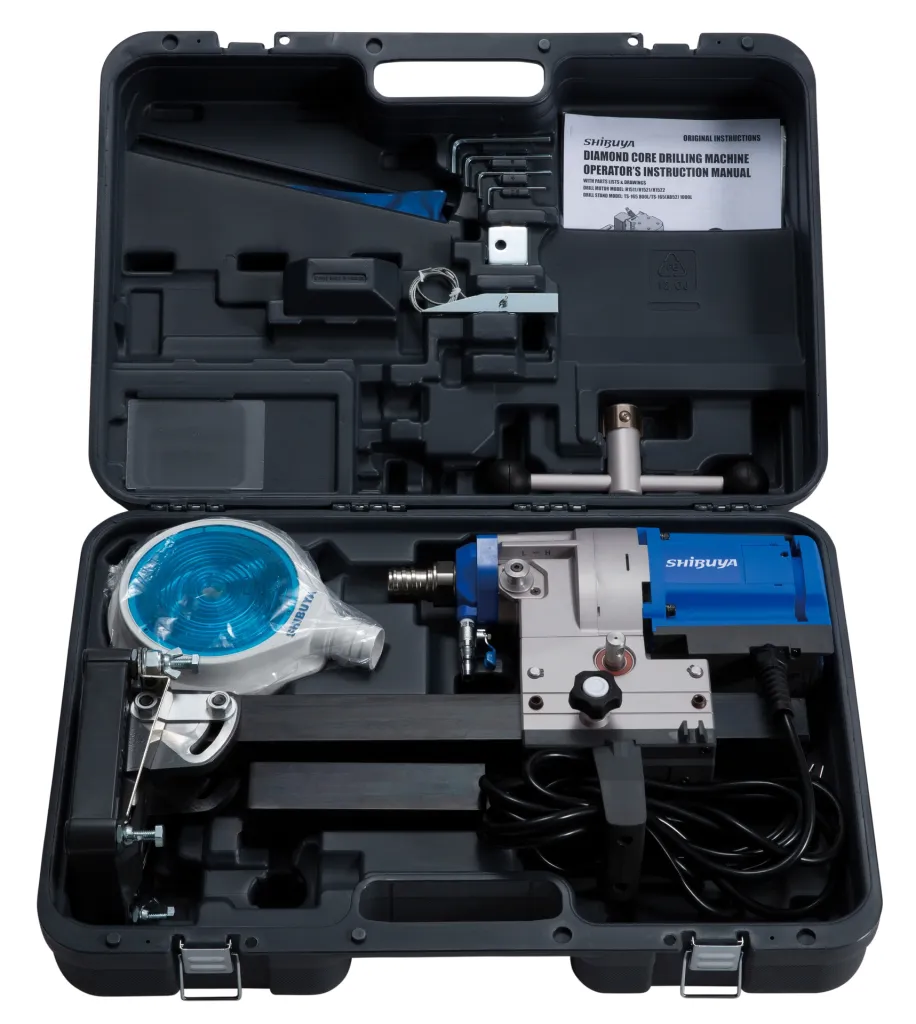

Carry Case: Convenient case for easy transport and storage of the drill stand and motor assembly.
This drill stand and motor combination with the added carry case is perfect for professionals seeking reliability, high performance, and portability in their drilling equipment.

*Core drill bit not included
