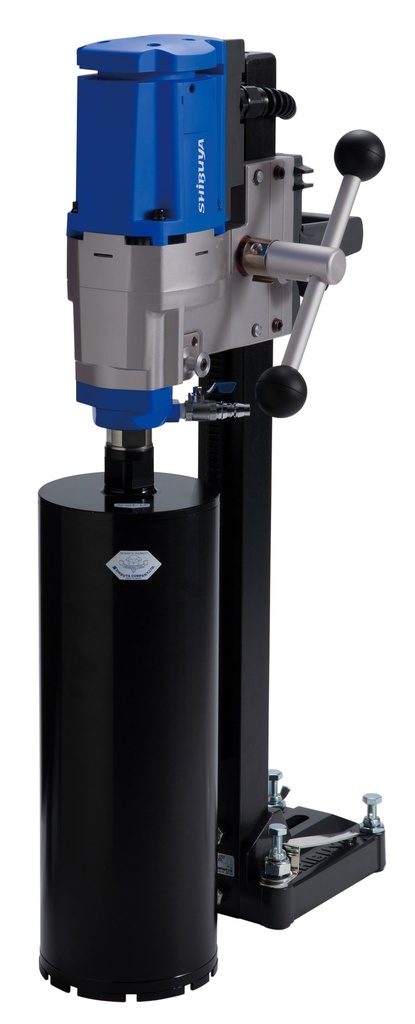

Shibuya Core Drill Complete - H1521 Motor with TS-165(AB52) Large Drill Stand

Rated Input 1,700 W (110V)
Voltage 110-120V
Speed 2
Spindle Revolutions at No Load 750/1,150 rpm (H1521 110-120V)
Spindle Revolutions at Rated Load 520/790 rpm (H1521 110-120V)
Spindle Thread UNC 1-1/4"
Weight H1521 w carriage block: 9.4 kg TS-165(AB52)(1000L): 7.5 kg
Height 1011 mm (AB52)
Base Size 146 x 205 mm
Available Stroke 715 mm (AB52)

Maximum Bit Capacity: 180 mm (7").

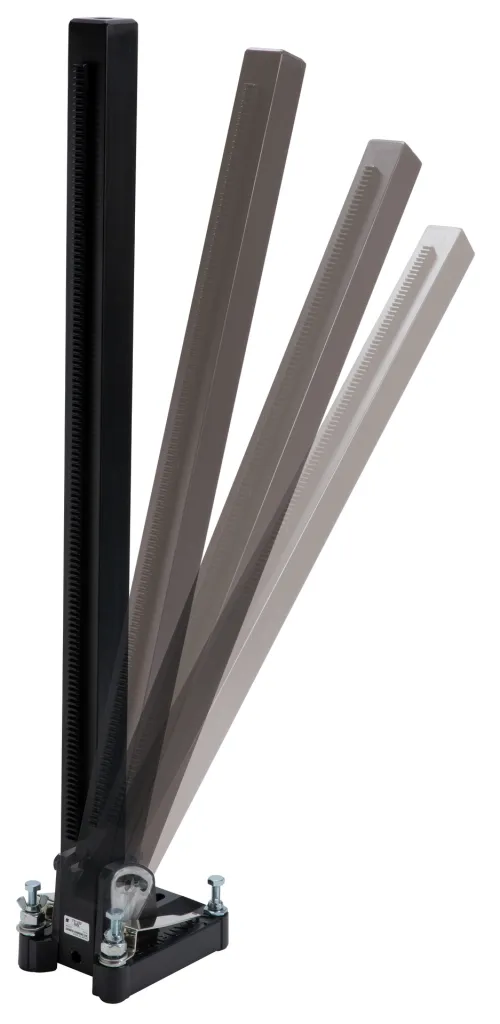

The TS-165(AB52) Drill Stand paired with the H1521 Motor is designed for small to medium-sized core drilling jobs, offering a versatile and powerful solution for professional use. This setup features the AB52 swivel base for enhanced maneuverability and precision. Key features include:

Two-Speed Motor: 750/1150 rpm, providing flexibility for various drilling applications.
Built-in On/Off Switch with Overload Protection: Ensures safety and extends motor lifespan.
Multi-position Water Swivel Inlet: Offers convenience during operation.
Right and Left Hand Feed Handle Positions: Accommodates user preference for ease of use.
Portable Residual Current Device (P.R.C.D.): Automatically shuts off electricity in the event of electric leakage (220-240V only).
Includes a Water Collector Ring: Ensures a clean and efficient drilling process.
AB52 Column: 1011 mm (40″) with 715 mm (28″) stroke.
50 mm (2″) Square Column: Provides stability during operation.
Tool Kit: Includes wrenches and Allen keys for maintenance and adjustments.
This drill stand and motor combination is perfect for professionals seeking a reliable, high-performance, and adaptable tool for their drilling needs.

*Core drill bit not included
