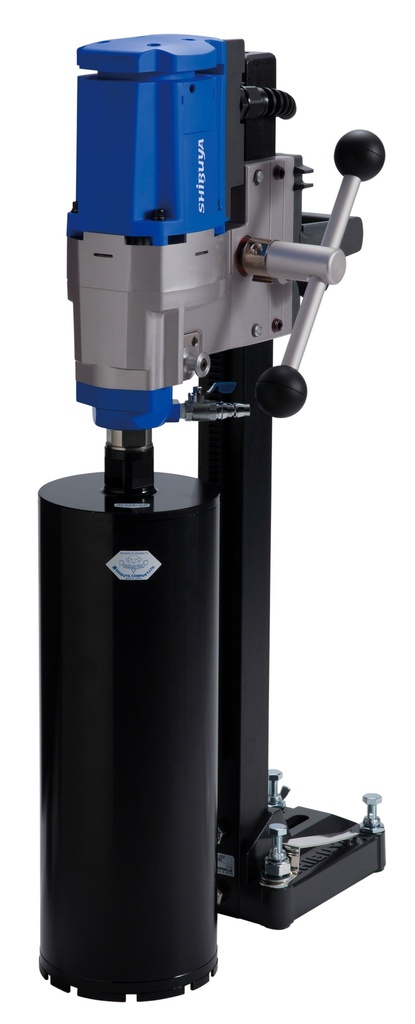

Shibuya Core Drill Complete - H1521 Motor with TS-165 Drill Stand

Rated Input 1,700 W (110V)
Voltage 110-120V
Speed 2
Spindle Revolutions at No Load 750/1,150 rpm (H1521 110-120V)
Spindle Revolutions at Rated Load 520/790 rpm (H1521 110-120V)
Spindle Thread UNC 1-1/4"
Weight H1521 w carriage block: 9.4 kg・TS-165(800L): 5.2 kg
Height 803 mm
Base Size 146 x 205 mm
Available Stroke 545 mm

Maximum Bit Capacity: 180 mm (7").

The TS-165 Drill Stand combined with the H1521 Motor is an ideal setup for small to medium-sized core drilling jobs. This robust and versatile configuration provides precision, power, and convenience for professional drilling tasks. Key features include:

Two-Speed Motor: 750/1150 rpm, offering flexibility for various drilling applications.
Built-in On/Off Switch with Overload Protection: Enhances safety and motor longevity.
Multi-position Water Swivel Inlet: Provides convenience during operation.
Right and Left Hand Feed Handle Positions: Accommodates user preference for ease of use.
Includes a Water Collector Ring: Ensures a clean and efficient drilling process.
Normal Stand Column: 803 mm (31″) with 545 mm (21″) stroke.
AB52 Column: 1011 mm (40″) with 715 mm (28″) stroke.
Case Version Column: 793 mm (31″) with 497 or 535 mm (20″ or 21″) stroke (extension 200 mm column in use).
50 mm (2″) Square Column: Provides stability during operation.
Tool Kit: Includes wrenches and Allen keys for maintenance and adjustments.
This drill stand and motor combination is perfect for professionals seeking reliability, performance, and adaptability in their drilling equipment.

*Core drill bit not included
