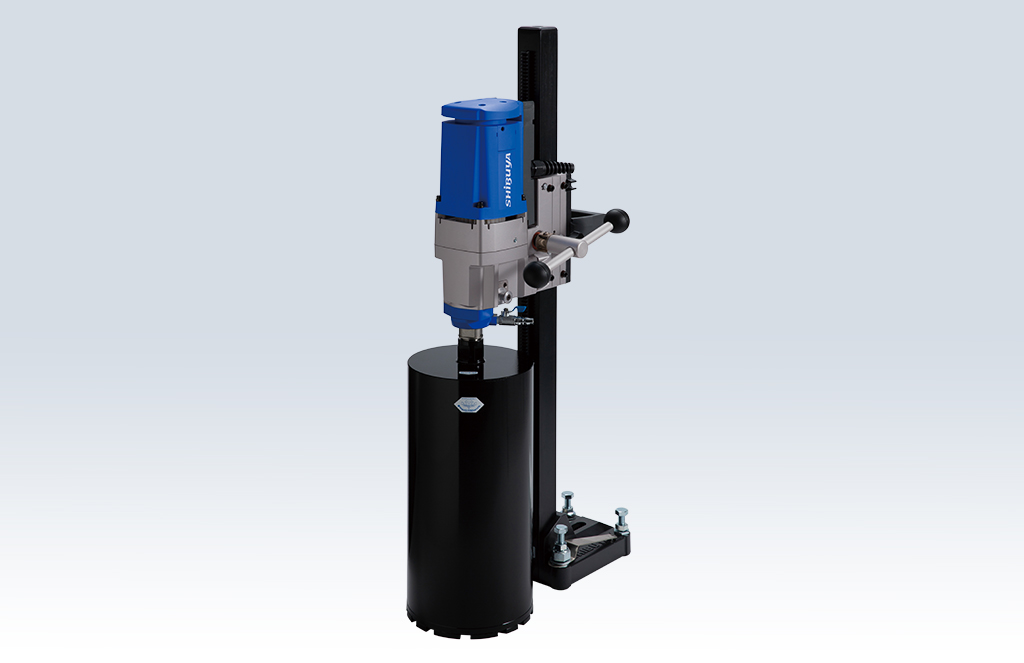

Shibuya Core Drill Complete - H2021 Motor with TS-255 Drill Stand Large

Rated Input 2,300 W (110-120V)
Voltage 110-120V
Speed 2
Spindle Revolutions at No Load 450/950 rpm (H2021 110-120V)
Spindle Revolutions at Rated Load 310/680 rpm (H2021 110-120V)
Spindle Thread UNC 1 -1/4"
Weight H2021 w carriage block: 12.2 kg・ TS-255(1000L): 7.5 kg
Height 1003 mm
Base Size 158 x 217 mm
Available Stroke 693 mm (1003L)

Maximum Bit Capacity: 250 mm ( 10") with 30 mm Spacer

The most powerful medium-sized SHIBUYA core drilling machine.
Built-in on/off switch with motor overload protection.
Ideal machine for middle size jobs.
Multi-position water swivel inlet for convenience.
Right and left hand feed handle positions.
Includes a water collector ring.
Normal Stand Column: 803 mm (31″) with 493 mm (19″) stroke.
Long Column: 1003 mm (39″) with 693 mm(27″) stroke.
AB52 Column: 1011 mm (40″) with 680 mm (27″) stroke.
50 mm (2″) square column.
Tool kit including wrenches and allen keys.

*Core drill bit not included
