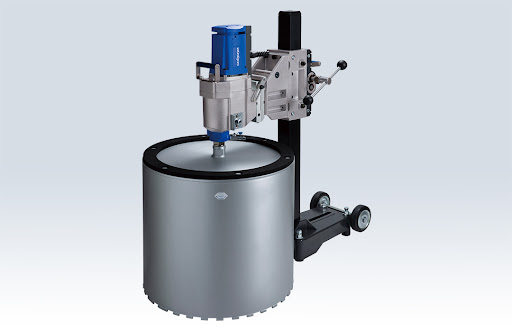

Shibuya Core Drill Complete - H2531 Motor and TS-405 with Carriage Block

Rated Input 2,750 W (110 V)
Voltage 110-120 V
Speed 3
Spindle Revolutions at No Load 300 / 700 /1400 rpm (110-120 V)
Spindle Revolutions at Rated Load 230 / 550 /1080 rpm (110-120 V)
Spindle Thread UNC 1 -1/4"
Weight H2231 w carriage block: 17.8 kg TS-405: 14.8 kg
Height 1003 mm
Base Size 176 x 275 mm
Available Stroke 633 mm

Maximum Bit Capacity: 400 mm (16") with 30 mm Spacer

The H2231 Drill Motor is an ideal machine for a wide range of core drilling jobs, capable of handling tasks up to 400 mm (16"). It features a powerful 2750W motor with three-speed settings (300/700/1400 rpm), providing versatility and high performance. Key features include:

Built-in On/Off Switch with Overload Protection: Enhances safety and motor longevity.
Multi-position Water Swivel Inlet: Provides convenience during operation.
Right and Left Hand Feed Handle Positions: Accommodates user preference for ease of use.
Includes a Water Collector Ring: Ensures a clean and efficient drilling process.
This drill motor is perfect for professionals who need a reliable and powerful tool for large-scale core drilling projects.

*Core drill bit not included
