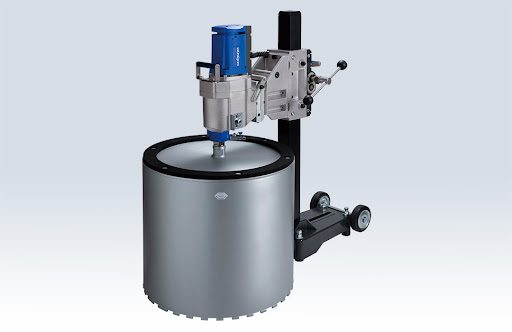

Shibuya Core Drill Complete - H2531 Motor and TS-605 with Carriage Block

Rated Input 2,750 W (110 V)
Voltage 110-120 V
Speed 3
Spindle Revolutions at No Load 150 / 300 / 600 rpm (110-120 V)
Spindle Revolutions at Rated Load 100 / 200 / 400 rpm (110-120 V)
Spindle Thread UNC 1 -1/4"
Weight H2531 motor: 20.6 kg TS-605 w carriage block: 42.9 kg
Height 1106 mm
Base Size 230 x 400 mm
Available Stroke 634 mm

Maximum Bit Capacity: 600 mm (24") with 130 mm Spacer

The H2531 Drill Motor is an exceptional machine designed for large diameter core drilling jobs, capable of handling tasks up to 600 mm (24") with a 130 mm spacer. It features a powerful 2750W motor with three-speed settings (150/300/600 rpm), ensuring high performance and versatility. Key features include:

Built-in On/Off Switch with Overload Protection: Enhances safety and motor longevity.
Multi-position Water Swivel Inlet: Provides convenience during operation.
Right and Left Hand Feed Handle Positions: Accommodates user preference for ease of use.
Includes a Water Collector Ring: Ensures a clean and efficient drilling process.
Positive Carriage Lock: Ensures stability and precision during drilling.
This drill motor is perfect for professionals who require a powerful and reliable tool for large-scale core drilling projects.

*Core drill bit not included
