Shibuya

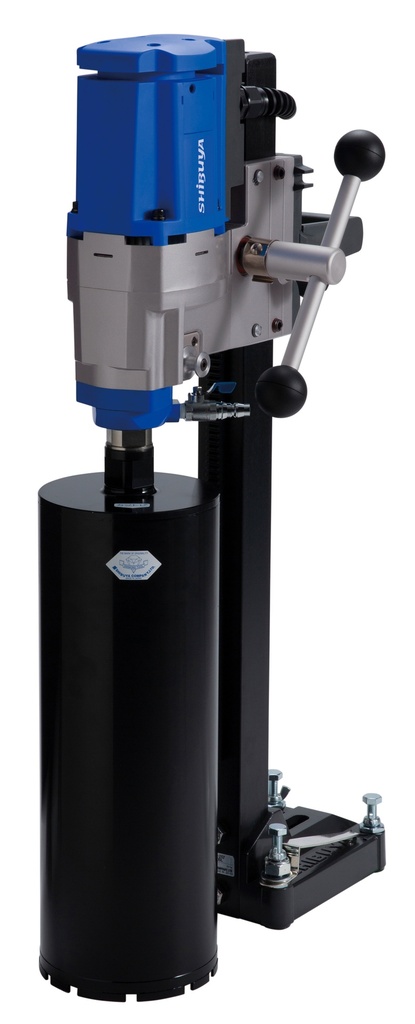

Shibuya Core Drill Complete SET - H1521 Motor + TS-165(AB52) Stand + Carry Case

Core drill set for small to medium coring jobs: the H1521 two-speed motor on a TS-165 (AB52) stand with a swivel base for manoeuvring, supplied in a carry case. 1700 W, spindle speed 750/1150 rpm no load (520/790 rpm under load), 1 1/4 in UNC thread. A built-in overload cut-out protects the motor, and a GARDENA-type water connector feeds the bit. On the stand: 497 mm stroke, 793 mm height, drills to 180 mm diameter. Motor and carriage 9.4 kg, stand 7.3 kg. Shibuya H1521 + TS-165 (AB52).

1,498.00 € EUR 1,498.00 EUR 1,842.54 ex VATinc VAT 1,498.00 € EUR 1,498.00 EUR 1,842.54

In stock - collect from Dublin 10 today, or delivery in 2 to 3 working days
  • Brand - Shibuya
  • Voltage
  • Power
  • Weight
  • Max Drilling Diameter
  • Spindle Thread
  • Stroke
  • Speed
  • Plug
Add to basket
Buy now
Delivery in 2 to 3 working days on stocked lines
Collect from the counter, Kylemore Park North, Dublin 10
Ring 01 889 9000 - the counter, Mon to Fri 8:00 to 17:00. Ask if you are unsure about fitment.
Contact Us
SPECIFICATION
Voltage110V
Power1.7 kW
Weight16.7 kg
Max Drilling Diameter180 mm
Spindle ThreadUNC 1-1/4"
Stroke497 mm
Speed750/1150 rpm
Plug16 A 3-pin
Shibuya
Voltage : 110V
Power : 1.7 kW
Weight : 16.7 kg
Max Drilling Diameter : 180 mm
Spindle Thread : UNC 1-1/4"
Stroke : 497 mm
Speed : 750/1150 rpm
Plug : 16 A 3-pin
Documents
TS-165 + H1511,H1521,H1522 Instruction Manual.pdf
THE JOB IT DOES

Core drill set for small to medium coring jobs: the H1521 two-speed motor on a TS-165 (AB52) stand with a swivel base for manoeuvring, supplied in a carry case. 1700 W, spindle speed 750/1150 rpm no load (520/790 rpm under load), 1 1/4 in UNC thread. A built-in overload cut-out protects the motor, and a GARDENA-type water connector feeds the bit. On the stand: 497 mm stroke, 793 mm height, drills to 180 mm diameter. Motor and carriage 9.4 kg, stand 7.3 kg. Shibuya H1521 + TS-165 (AB52).

Ask about this machine - answered from the counter, Mon to Fri.
