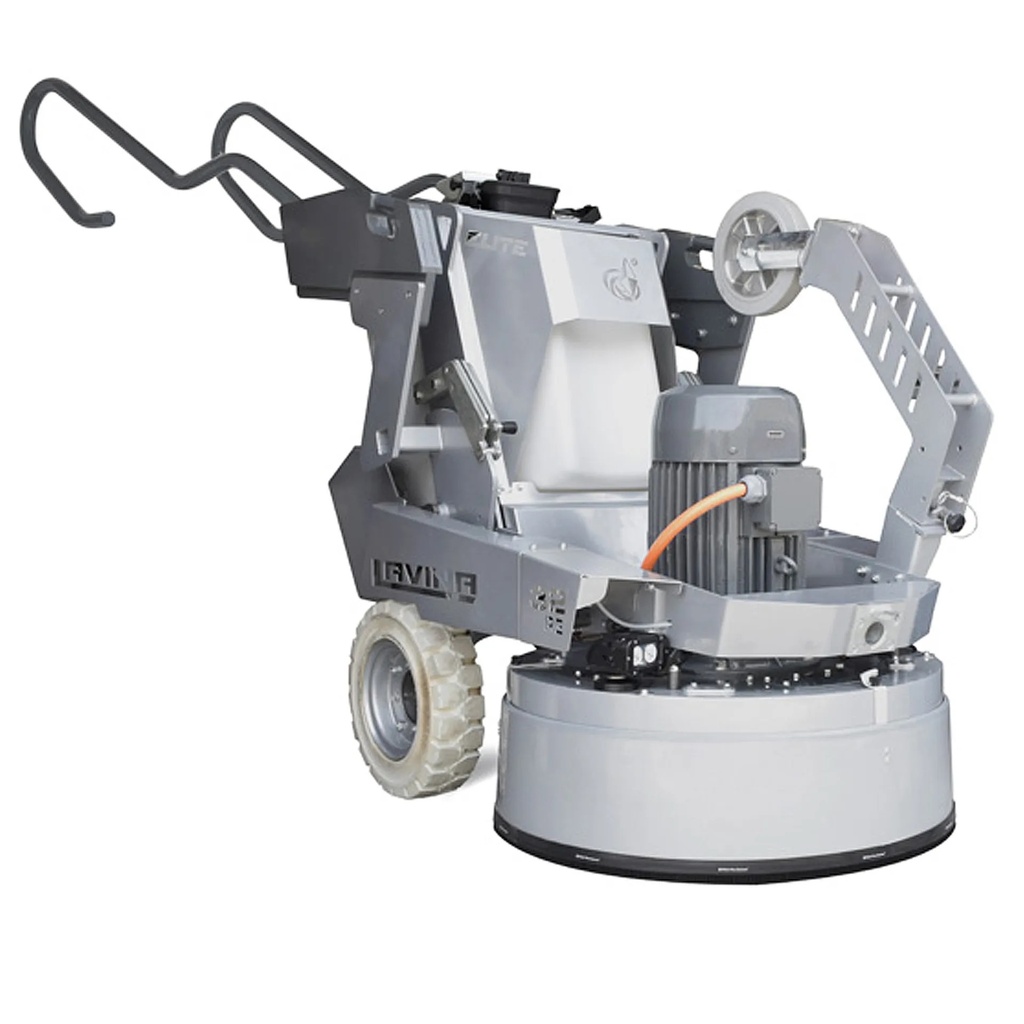

Lavina Elite L32REU 3 Head Planetary Grinder/Polisher with Remote Control
Change your workflow with a touch of a button!
Lavina 32-inch grinder with remote control offers easy grinding and polishing, and effortless transportation and loading. It can also be used in self-propelled and manual mode.
NEW AND IMPROVED WATER SYSTEM with gravity-fed water supply from the water tank and external water supply from a hose provides more water under the machine for optimal wet grinding, and simpler operation and maintenance. There is no water pump or misting system on the new machines.
• The super light and easy-to-use remote control remote control offers EFFORTLESS operation, transportation and loading. The grinders also has intuitive touchscreen panel for essential operating information such as power supply and consumption, machine load, hour meter, tool holder rpm and option to choose rpm setting with tool input, water supply and lights activation, maintenance reminders, etc.
• The RC grinder can be used in self-propelled and manual mode when remote is down.
• Dust-proof planetary drive with low-friction rubber seal protects internal components from dust and moisture, which reduces maintenance and increases service life.
• Easy-to-use integrated weights with 4 positions for adjusting the grinding pressure. With the weights down, you can grind more aggressively. Move weights all the way back to tilt the machine up easily and change tools.
• Improved dust collection efficiency. Adjustable skirt with a flexible brush for better dust containment. Also, the vacuum hose connection is now closer to the dust source, and utilizes a metal camlock attachment.
• Offered in 3 phase, 220V and 480V models. The 220V model has built-in protection against excessive voltage.
• Adjustable handle bar with multiple handle positions for more convenient operation and transportation. Make sure the handle position is locked when moving or using the machine.
• LED lights for monitoring the floor – two on the base in the front improves visibility, and another one in the back of the machine close to the floor helps monitor the scratch pattern.
• Convenient lift points for moving the machine with a forklift when needed.
• Charging phone station.
• Durable stainless steel cup holder.
Horsepower 15 KW
Voltage (50/60 Hz)* 3ph x 200-240V
Amperage (max)* 60 Amp
Dedicated Breaker Requirement 80 Amp
Generator Recommendation 45 KW
Weight of Machine 1543 lbs / 700 kg
Grinding Pressure Weights Pos. 1
Grinding Pressure Weights Pos. 2
Grinding Pressure Weights Pos. 3
Grinding Pressure Weights Pos. 4
Attachment Speed 300-1100 rpm
Working Width 814mm
Tool Holder Diameter 3x225mm
Vacuum Hose Port Camlock E300
Water feeding (with pump) Peripheral & Front
Water tank capacity 46L
Cable Length 17.4 m
RC Battery (rechargeable)
Machine Size LxWxH
