Image of m-tec M330 pump
Product information

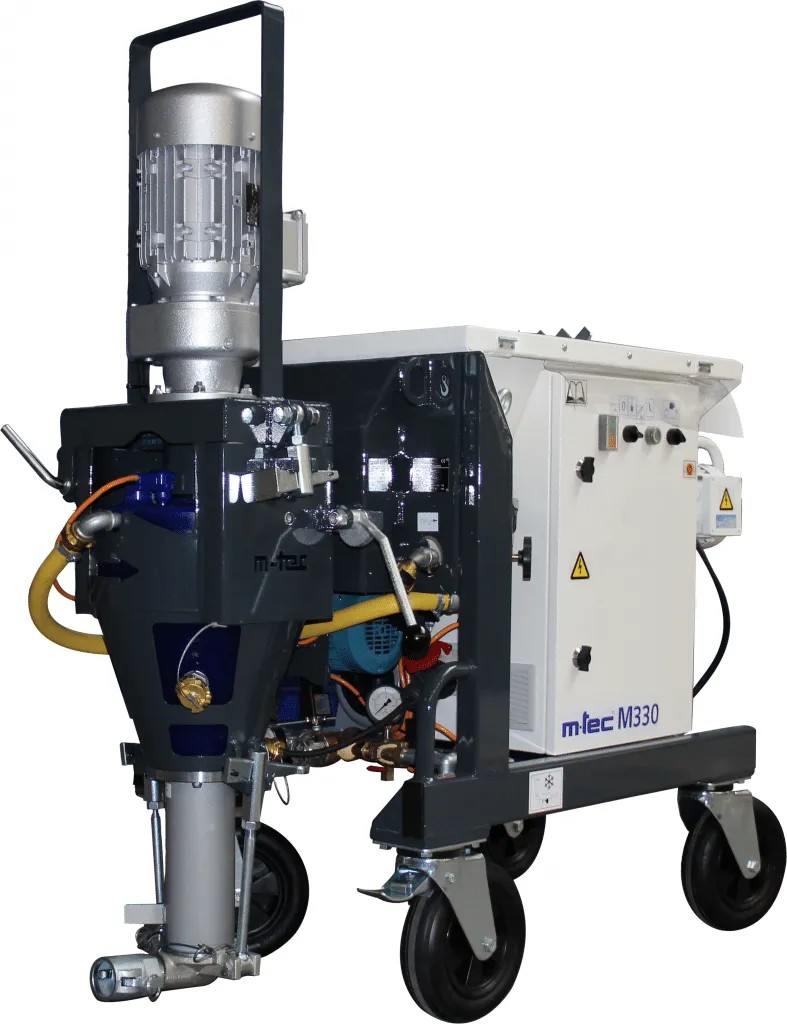

m-tec M330 pump

€12,052.77

Quantity
Sold Out

Description

With its convincing technology, the M330 marks the start of a new generation of mixing pumps. The “trick”with this new technology is our latest patented mixing principle, which allows the material to be blended perfectly and also ensures permanent consistency of the material. This means that the pump does not have to perform any additional mixing tasks and can concentrate on its core function – pumping.

Specifications:

Standard delivery volume: Approx. 24 l/min (depending on worm pump 6 – 47 l/min),
Pumping distance: up to 50m,
Pumping height: up to 30m,
Pumping pressure: up to 30 bar,
Drive motors,
Dosing: 2.2 kW, 400 V, 50 Hz,
Mixing pump: 4.0 kW, 400 V, 50 Hz,
Compressed air supply: 0.9 kW, approx. 250 l/min, 4 bar,
Water pump: 0.3 kW, approx. 40 l/min, 4 bar,
Electrical connection: 400 V, 50 Hz, 3 ph,
Fuse: 25A,
Connecting cable: 5 x 4.0 mm²,
Connector: 32A, 5p, 6h,
Water supply: 3/4“ water hose with GEKA coupling, required water pressure/min. 2.5 bar while the machine is running,
Dimensions: Approx 1650 x 640 x 1,470 mm,
Weight: Approx 270 kg.
