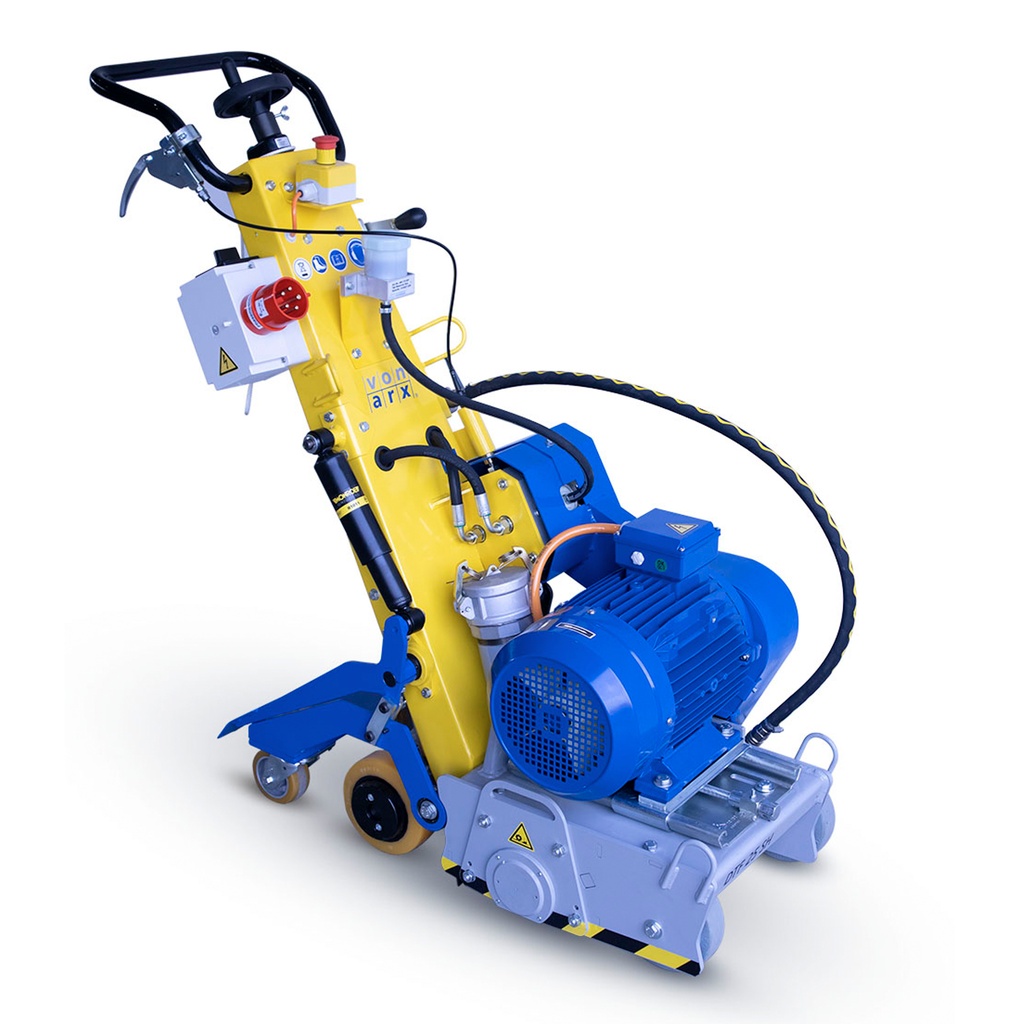

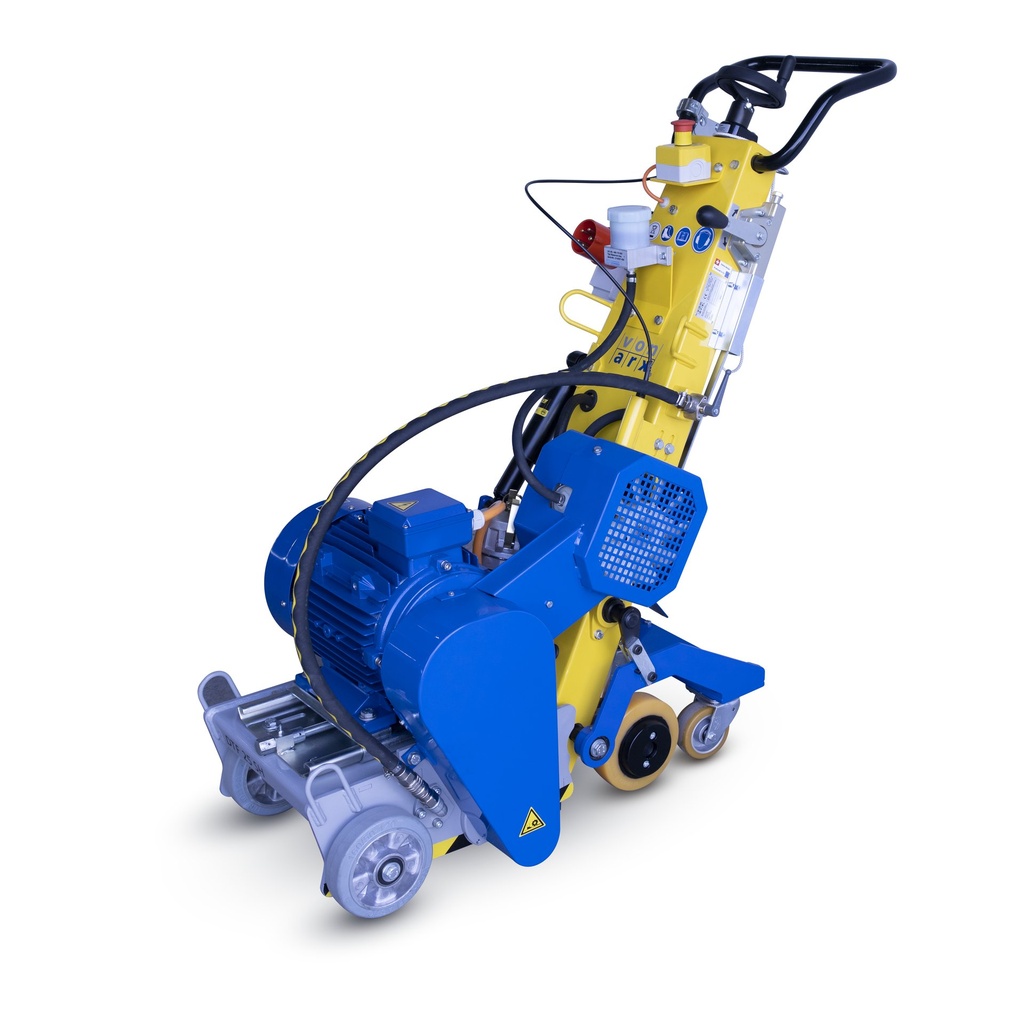

Von Arx DTF 25 SH Three Phase Floor Shaver

Sold Out


With the DTF 25 SH the surface is carefully „grinded off“ instead of chipping it away. Thus the machine runs calmly and produces a smooth surface. The DTF 25 SH has a drum which is equipped with diamond blades. It removes the material very precisely. For grooving or milling you can choose between two different diamond blades: one for rough and one for smooth surface preparation. For running the machine you must connect the water cooling system so the diamond blades do not overheat. The machine is available as a 11 kW electrical version with a hydraulic traction unit.

Power 400V, 50HZ
Wattage/HP 11Kw/14.8HP
Weight 223.2Kg/492lbs
Working width 25cm/10"
Distance to wall 10cm/4.1"
Depth hard concrete 10mm/.40"
Depth softer concrete 12mm/.48"
Production/h 45-50m2/485-540 ft2/h on maximum depth
Dimensions cm/inch 115x48x115/45x19x45
Standard cutters included 66pcs Diamond blades 125mm/5"
