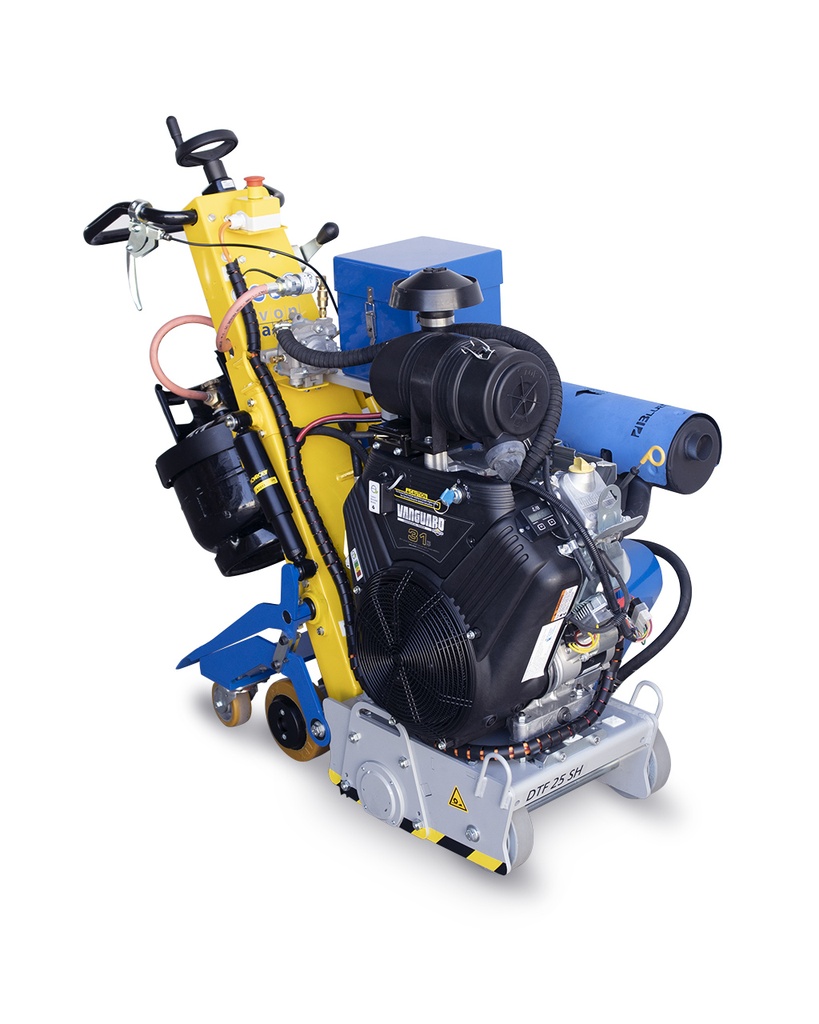

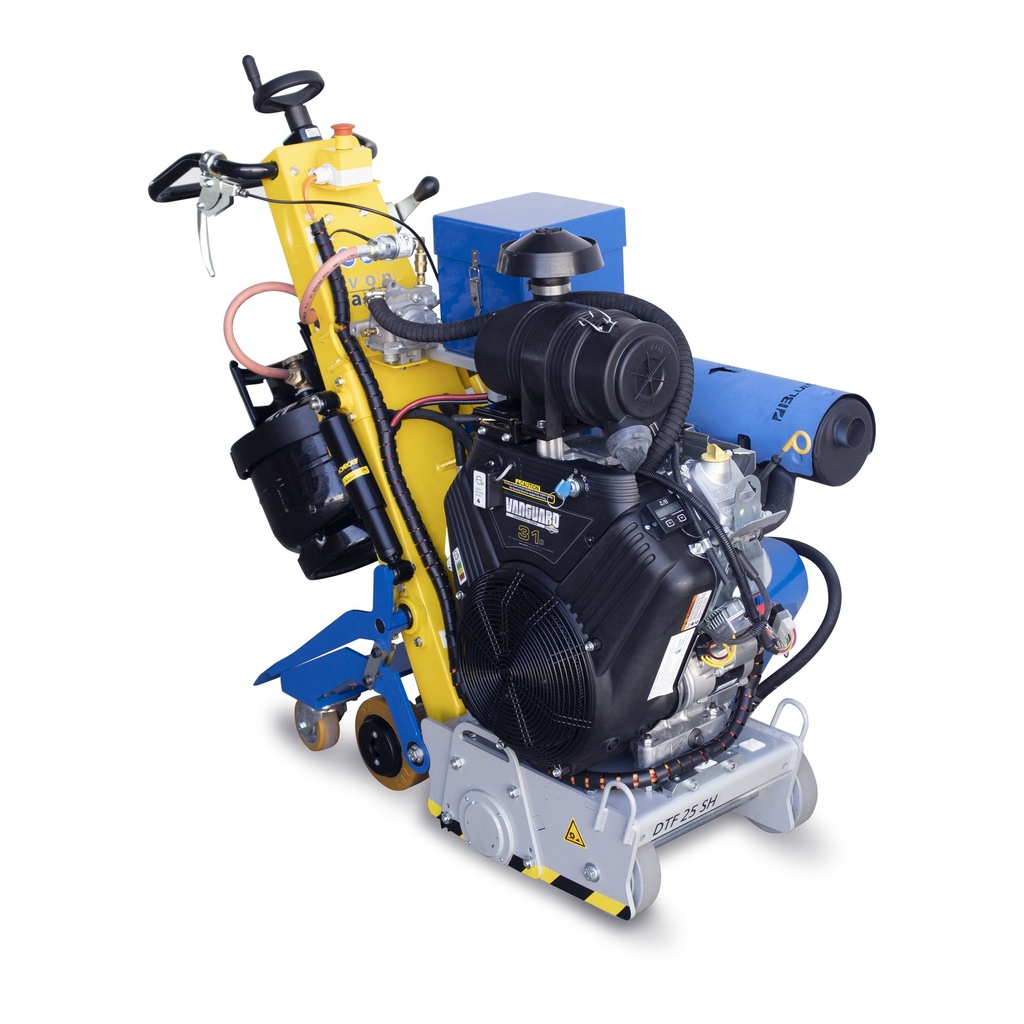

Von Arx DTF 25 SH LPG Floor Shaver

With the DTF25 SH LPG the surface is carefully “ground off“ instead of chipping it away. Thus the machine runs calmly and produces a smooth surface. The DTF 25 SH LPG has a drum that is equipped with diamond blades. It removes the material very precisely. For running the machine you must connect the water cooling system so the diamond blades do not overheat. This machine runs on propane with a hydraulic traction unit. The DTF 25 SH LPG comes standard equipped with drum and diamond turbo blades

It is not allowed to run the side attachment unit at the same time as the main cylinder.

Key features
Wattage / HP 23 Kw / 31 HP
Working width 25 cm / 10”
Distance to wall 6.7 cm / 2.6”
Depth hard concrete 10 mm / .40”
Depth softer concrete 12 mm / .48”
Production / h Up to 968 f2 / h, 90 m2 / h
Standard blades
included
72 pcs of 5”, 125 mm
diamond blades

---
