Professional drilling in electrical installation.

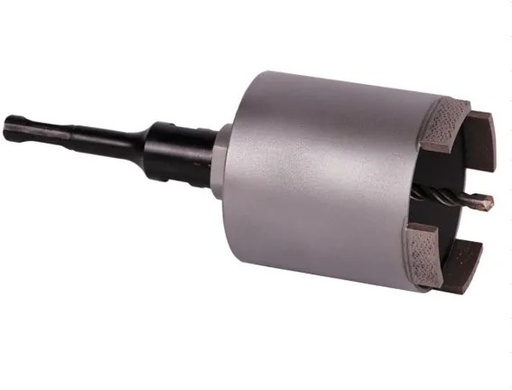

The ADTnS DLD CS-X diamond drill bit is designed for drilling holes for the installation of electrical outlets. This drill bit effectively works when drilling reinforced, non-reinforced concrete, foam concrete, brick.
Equidistant evenly distributed diamond in segments provides high-performance and stable drilling speed.
The diamond drill bit is used on all types of handheld electric drills with adjustable speed and hammer drills.
Available in 3 diameters: 68, 72 and 82 mm on the market. They can be equipped with a magnetic adapter Magnet or without it.
The magnetic drill adapter allows you to quickly remove the centering drill bit, which significantly increases the overall performance of the work.
It is recommended to use such drills on a hand tool with a power of at least 650 W

Segment-oriented diamond. High-performance speed of drilling in difficult conditions. The possibility of filing a small amount of water.

Diamond crown drill bit with an optimal speed and lifetime ratio.
For drilling reinforced concrete and bricks.
Used on diamond drilling machines.
Mandatory use of water coolant.
The ring segment with grooves is attached to the steel core by silver brazing.
The drill bit is manufactured in a diameter range of 10 mm-35 mm with length of 150, 320 or 450 mm, and a 1/2 GAS shank
It is recommended to slow down the drill bit rotation speed when passing the reinforcement.
Follow the recommendations for water coolant supply intensity.
The drill bit can be retipped at specialized service centers.

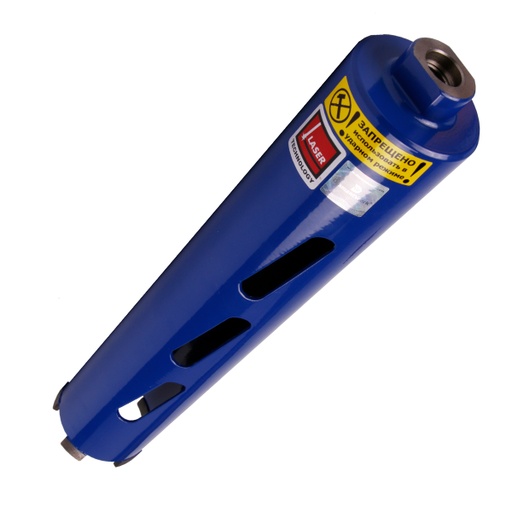

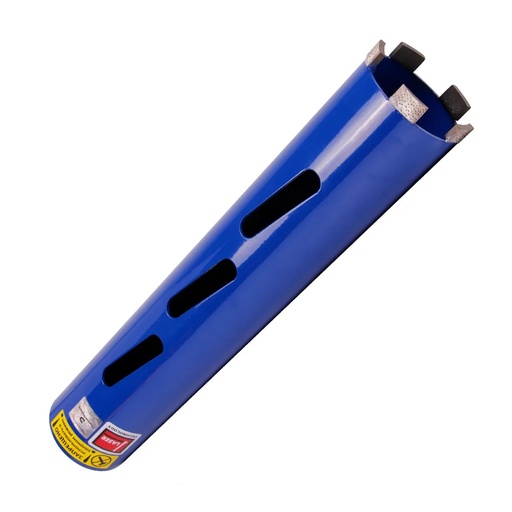

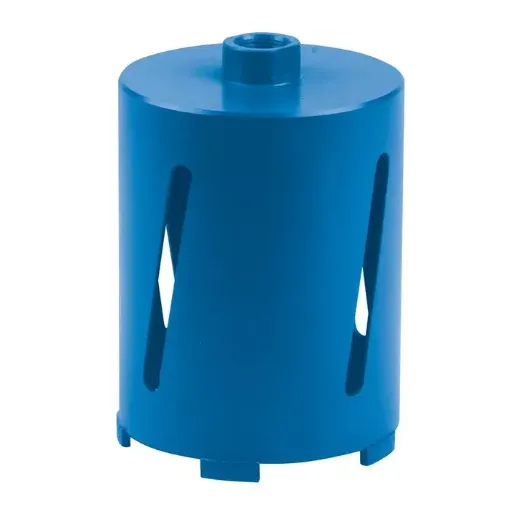

Diamond drill bit Distar DDS-W T-Concrete is designed for drilling holes for further socket installation. Suitable for working with surfaces of non-reinforced and reinforced concrete, as well as bricks.
The drill bits are used in combination with any type of manual electric drills with adjustable speed and hammer drill. Available in three diameters – 68, 72 and 82 millimeters. They can also be equipped with a magnet adapter. It is recommended to use the drill bits on a hand-held machine with a power of at least 650 W.

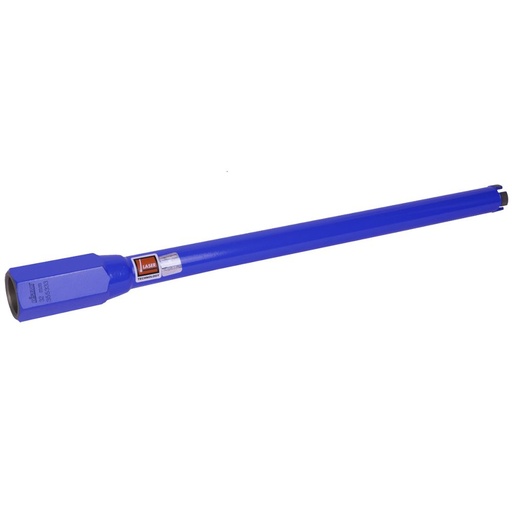

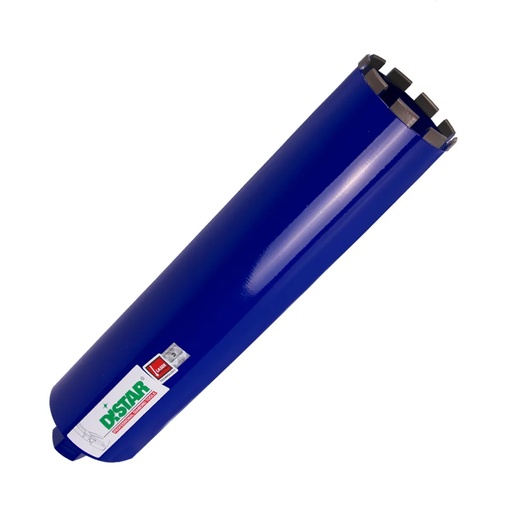

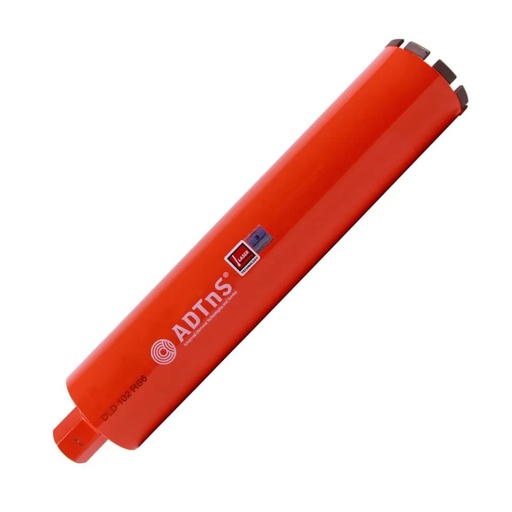

Diamond drill bit DDS-W 1 1/4 UNC Reinforced Concrete is an ideal tool for working with low-abrasive materials, as well as highly reinforced concrete. Provides stable work even with heavy reinforcement.
Available in number of diameters from 32 to 500 millimeters. The length of the working area of the drill bit is 450 mm. There is a difference in the number of segments depending on the diameter, which is from 4 to 30.
Depending on its diameter, it provides a speed of 5 to 7 centimeters per minute, with a lifetime of 9.5 to 12.5 meters.
The diamond drill is positioned as a tool with a great lifetime and good speed.

When drilling holes for sockets, a large amount of time is spent on preliminary preparation. After determining the location of the sockets, it is necessary to mark the level, mark the interaxial distance of the holes. Perform pre-drilling with a carbide drill for further drilling. The process itself is accompanied by a large amount of dust, which slows down work and requires further cleaning. Now everything will become faster and easier with the new guide collector FixDUSTER X3.

The Distar Aqua Duster 162 ensures clean and efficient drilling with up to 90% dust and water collection, whether you're working in dry or wet mode. Designed for drill diameters up to 162 mm, it’s made from durable plastic for long-lasting use.

Compatible with vacuum cleaners (25–38 mm connection) and requiring at least 1.6 kW of power, it's the ideal solution for mess-free drilling in tough conditions

Centering and dust collection.

Used for drilling holes for various communications in a ceramic tile, porcelain tile and also holes for sockets in concrete, brick and other materials. The maximum hole diameter is 82 mm.
A very important step in drilling holes in construction materials is the centering step. The accuracy of hole placement, the quality of the hole edge and the drilling speed – all depends from correct centering.

A dust collector with a centering pad perfectly solves this problem.

Due to the vacuum of air from the vacuum cleaner, the collector is firmly fixed to the treated surface. The body of the drill is securely positioned relative to the centering pad. Drilling is quick, easy and controllable.
All dust is collected by the collector, ensuring comfortable operation and leaving the room clean.

FEATURES
- Effective vacuum fixation.
- Dust and sludge removing.
- Drilling diameter up to 82 mm.
- Rugged plastic.
- Additional hole center indicators easily position the product relative to the markup.
- The body of the collector is made of durable flexible plastic.

Drill Fix 68 is designed for centering the drill bits with diameter 6-70mm. Ensures maximum precision in drilling holes.
The template is fixed on the machined surface with a powerful suction cup, which ensures fast and reliable assembly of the template.
Working zone is equipped with hard alloy plates for protection from wear off during the drilling.

Diamond core bit DISTAR DDR-B GRANITE ACTIVE is a great helper to create holes of different diameters in ceramic surfaces. Most effectively shows itself in work with soft and hard ceramic tiles, as well as marble and ceramic granite. When drilling, it creates a clean edge, without damaging the general appearance of the material.
The drill bit is available in various diameters, from 6 to 46 millimeters.
The drill bit is equipped with a special shank, under the clamping chuck, which allows you to use the tool on the handheld drills. The mandatory condition for the operation is the power of the drill from 600W, the presence of a speed controller from 800 to 2000 rpm and the absence of hammer mode.
Due to the durable diamond layer, it allows to achieve maximum working speed and lifetime. Requires water cooling during drilling.

Dust collector for drilling holes Drill Duster 82 is a device for collecting dust and large particles of the material. The usage of the device is possible only with vacuum cleaners from 1.6 kW power. The size of the mounting hole for the dust extraction hose of the vacuum cleaner is 35 mm. It is fixed with a rubber ribbed seal.
Drill Duster 82 is made of durable plastic and has double seals for strong vacuum retention on the surfaces of building materials. The device allows the use of core drill bit diameters up to 82 mm.

The Distar Home Duster 40 is a lightweight (just 60 grams) yet durable dust removal tool, made from strong plastic for long-lasting use. It removes up to 90% of dust and large particles, keeping your workspace clean and safe.

With a mirror guide for precise 90° drilling and support for drill diameters up to 20 mm, it ensures accuracy with every use. Compatible with vacuum cleaner hoses from 25–38 mm, it's a must-have for clean, controlled drilling at home.

Advantage of the device:
- effective removal of dust and large particles
- light weight, only 60 grams
- durable plastic
- mirror guide, precise drilling under 90 degrees
- wide range of drilling diameter up to 20 mm

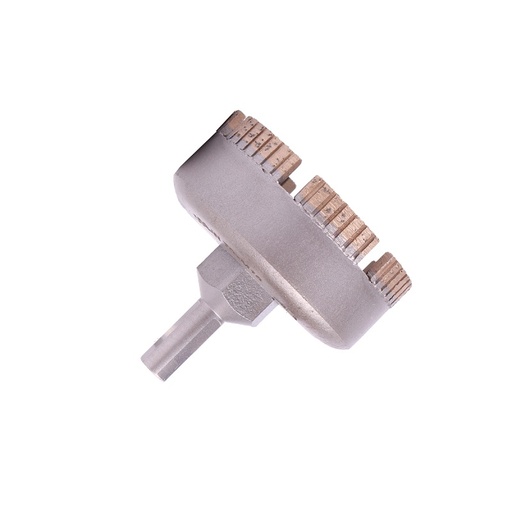

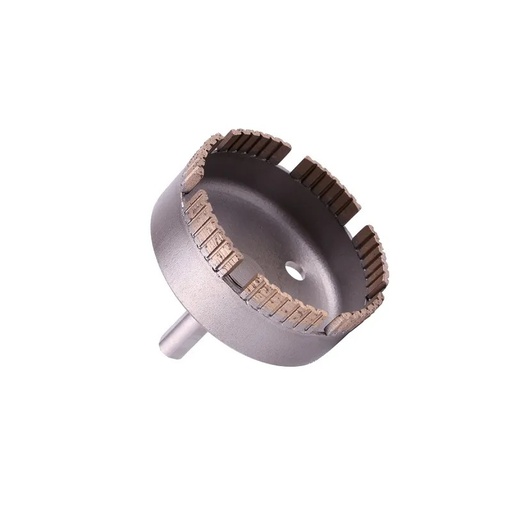

300 holes in porcelain stoneware. The most profitable drill.
Drills for porcelain stoneware holes on the market are manufactured using electroplating or vacuum deposition. Their main disadvantage is their short service life, often only 3-5 holes.
The new 70 Ceramics sintered drill bit has a life of approximately 300 holes in hard porcelain stoneware.
Shallow turbo grooves in the diamond segments provide high drilling speeds while maintaining the desired edge quality with minimal chipping.
The diamond segments on the body are laser-fixed, ensuring high reliability of the drill.
The drill has an outer diameter of 70 mm for drilling holes for sockets. Used on drills or screwdrivers with a power of 0.8-1.5 kW and a rotation speed of 900-1300 rpm.
Mandatory use of water for cooling. It is equipped with a foam sponge that acts as a water accumulator, which is displaced as it penetrates into the material.

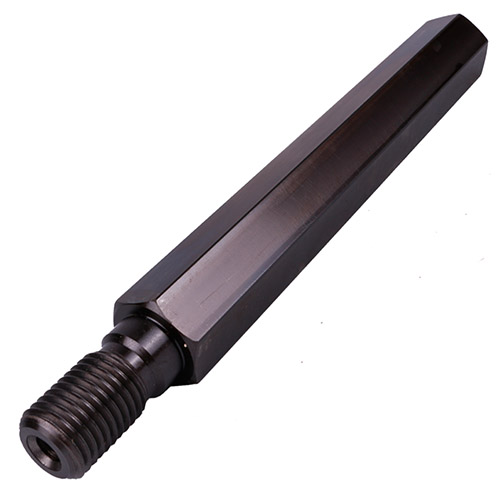

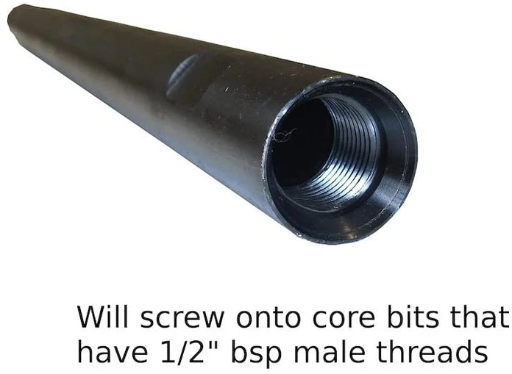

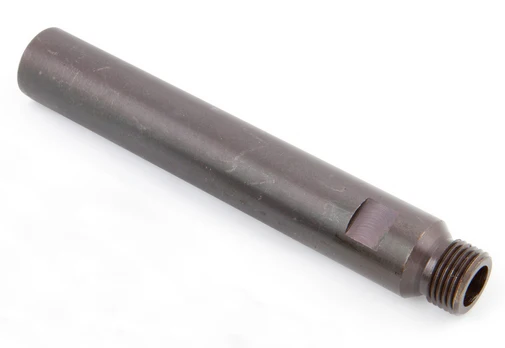

Steel extensions for drills with 1 1/4 UNC connection

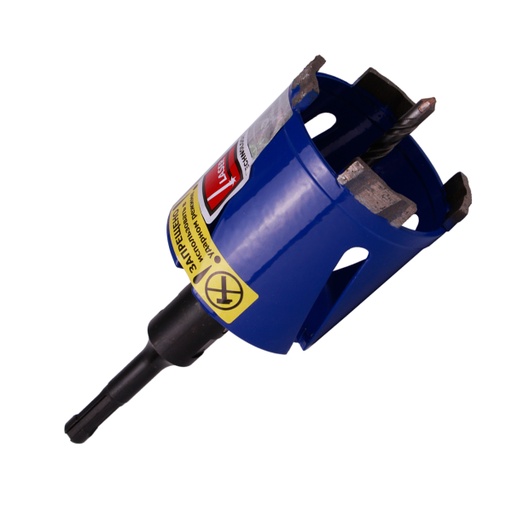

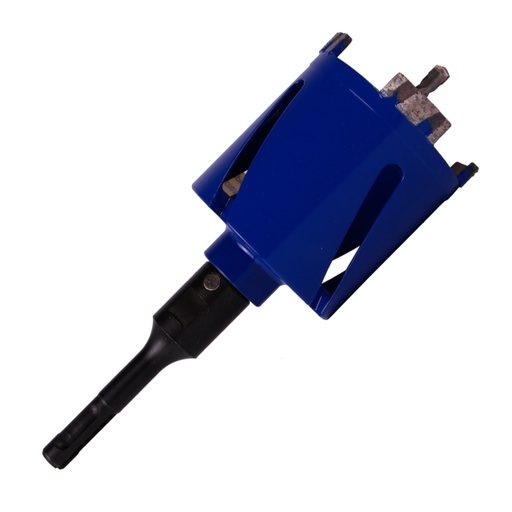

Features DiStar DDS-W T-Concrete Box Drill Dry for Concrete 82mm M16


With its ability to work on substrates ranging from reinforced to unreinforced concrete and brick, this drill is an essential tool for any electrician.
Wide range of applications - Suitable for reinforced and unreinforced concrete as well as brick, giving the user great versatility.

Flexibility - Can be used with any type of adjustable speed electric drill and hammer drill.

Magnetic adapter - A magnetic adapter can be added for additional functionality and ease of use.

Power requirements - These drills are designed for handheld machines with a minimum power of 650W, meaning they are robust enough for heavy-duty tasks.

Dry cooling - The drill is designed for dry cooling, which extends the life of the drill and reduces the risk of overheating.

Brand consistency - With the Distar brand, you can count on consistent product quality and reliability.

Technical specifications
Diameter - 82
Length - 65
Cooling - Dry
Shank type - М16
Application - Brick, concrete
Brand - Distar
Scope of delivery
DiStar DDS-W T-concrete box drill dry for concrete 82mm M16

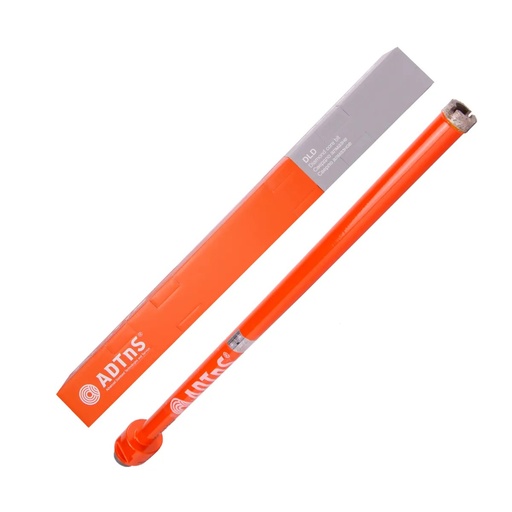

Diamond drill DDR-B 025x450-1x1 1/4 UNC Reinforced concrete is designed for drilling holes in highly reinforced, reinforced concrete, brick and other building materials.

It is used on drilling rigs with a capacity of up to 2.2 kW both on racks and in manual mode. It has a high speed of passing heavy reinforced concrete.

When passing the armature, it is recommended to reduce the speed of rotation. Mandatory application of cooling with running water.

The drill is 450 long, 1/4 UNC seat. With the help of extensions, you can increase the drilling depth to several meters

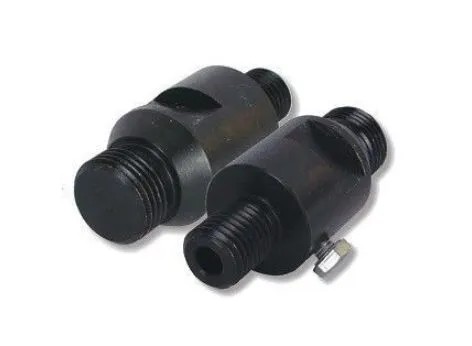

Outer thread 1 1/4 UNC, outer thread 1/2 GAS.

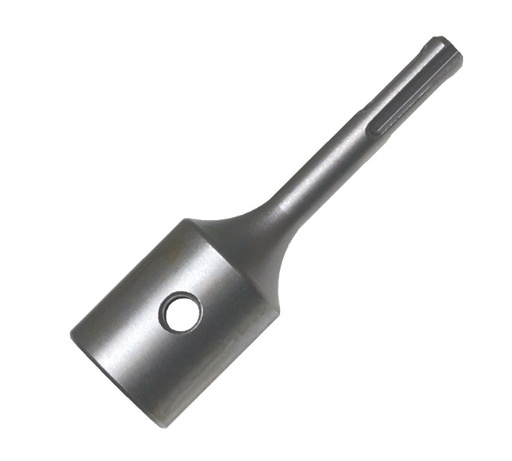

The adapter uses an external M16 thread to convert to an SDS shank, used for hammer drills with an SDS Plus quick-release chuck.

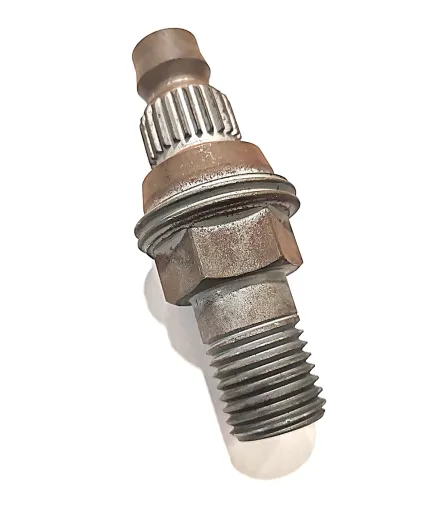

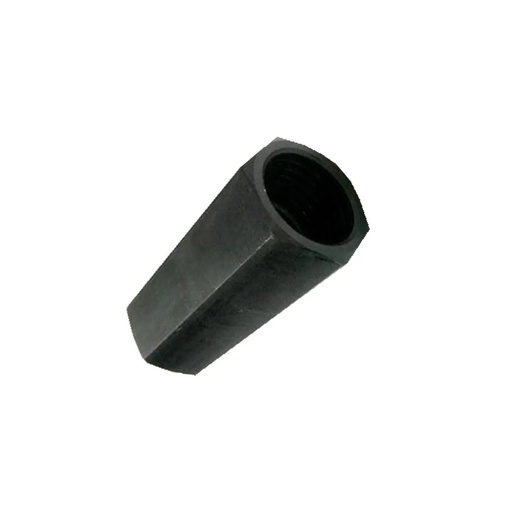

The adapter uses a 1 1/4' UNC male thread to convert to a 1/2 GAS male thread. Can be used on drills with a 1/2 GAS spindle to use drills with 1 1/4' UNC fasteners

Every year the range of hard, frost-resistant porcelain tiles is expanding, the processing of which is becoming more and more complicated. For cutting and drilling such materials, you need a high-speed tool.
Vacuum drill bits Keramik Baumesser Pro are high-speed drill bits for all types of ceramics and porcelain tiles. High-strength diamond, fixed in a solid bond, forms developed cutting micro-cutters that effectively penetrate the ceramic material.
The average drilling speed of 10 mm thick porcelain tiles with an angle grinder is 7 seconds (5-15 seconds depending on the hardness of the material). It is recommended to set the speed of angle grinder in the range of 8,000-11,000 rpm.
Drilling should be performed in dry mode with swaying movements, avoiding pressure on the drill bit.
It is produced in the diameter range of 6-120 mm for angle grinders 115 and 125 mm.

Faster than ever

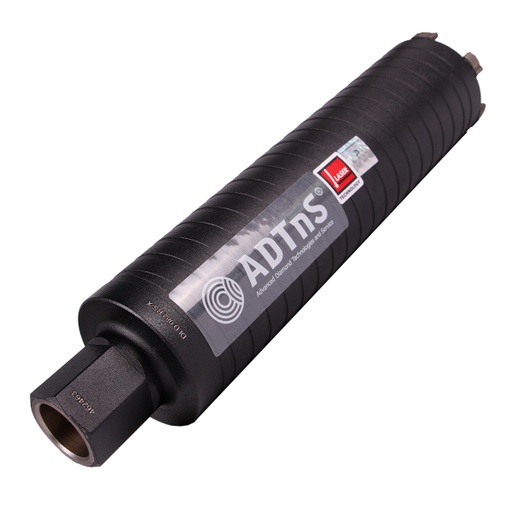

Core drilling in the concrete wall for conditioning installment, ventilation, or other communication lines without coolant is a very difficult and time-consuming process. Manufacturers and masters often work and have been looking for methods how to improve working speed.

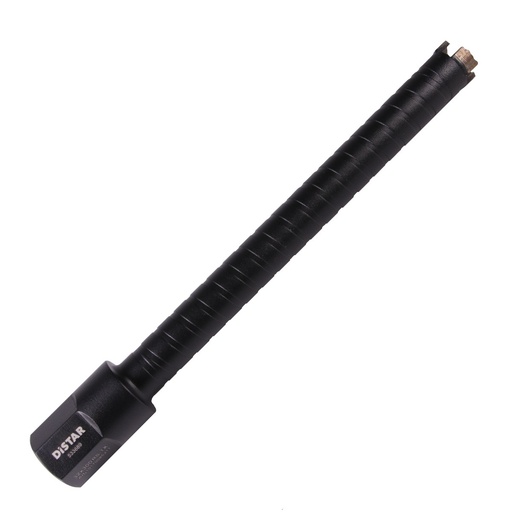

Nowadays the RS-TX drill is the quickest drilling tool in dry mode, developed especially for micro-percussion drilling machines. The drill bit’s screwed body effectively removes sludge from the drilling zone. The diamond segments, laser welded to the steel core, have turbo form with a high-strength and arranged diamonds. Drilling speed of 82 mm hole in B35 concrete with 20 cm thickness reaching in 2,5 minutes without coolant.
The drill bit installing into drilling machines with micro-percussion. It has a 300 mm length and 1 1/4 UNC shank.
It produced in following diameters: 42, 52, 62, 72, 82, 102, 112, 122, 132, 142, 152, 162, 172, 182, 200 mm
Characteristics of a drilling machine:
Rotation frequency 1100-2100 rpm.
Strike rating 0.25 - 0.5 mm.
Number of bits: 28000-45000 bpm
Power: 1,8 – 3,0 kW.

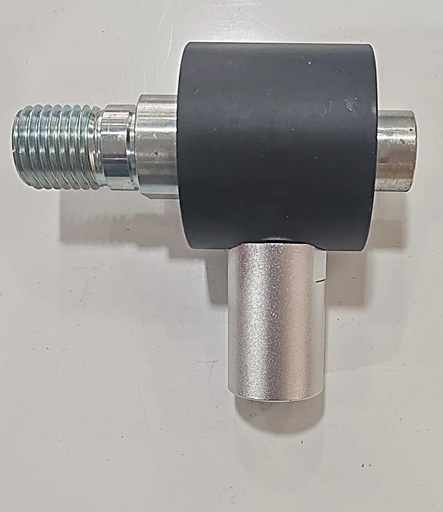

Dust collector 19568442025 MECHANIC DrillSTREAM 1 1/4 UNC x М18 and connector adaptor 01419031021 1 1/4UNC(in)xM18(out) are also used with a drill bit.
The RS-TX drill bit is an excellent solution for rooms with renovations where water cannot be used.

Centering of drills.
All workers know how difficult it can be to make the first drill in concrete and bricks. Drill segments goes to the sides, strong vibrations occurs, destroying the drilling surfaces. In most cases, we are talking about a renovated room where this is unacceptable.
The Centrator completely solveі this issue. It is necessary to drill a hole in the wall with a carbide drill bit with a diameter of 14 mm. Mount Centrator into the segments, and guide pin of the Centrator into the drilled hole. Make drilling in the non-impact mode to a depth of 4-8 mm. Then continue the usual drilling. The edge of the hole remains flat, smooth and clean even if the drilling takes place in ceramic tiles. Excellent result!
The Centrators are suitable for diamond drills RS/RM-TX and Concrete-X drills

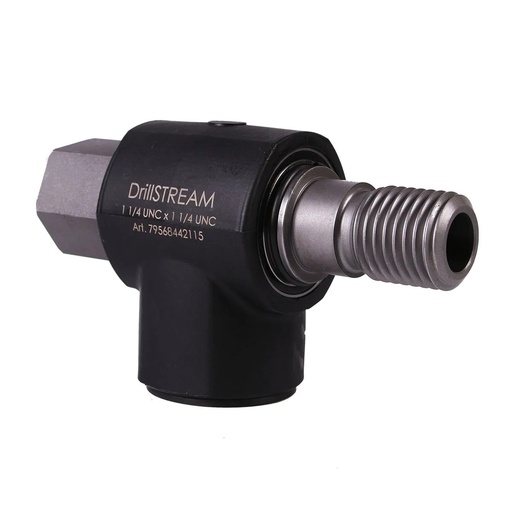

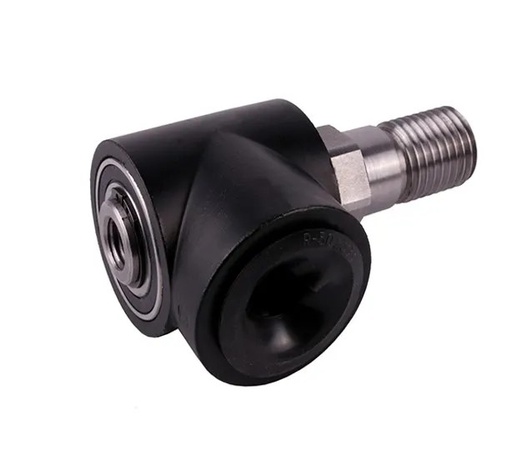

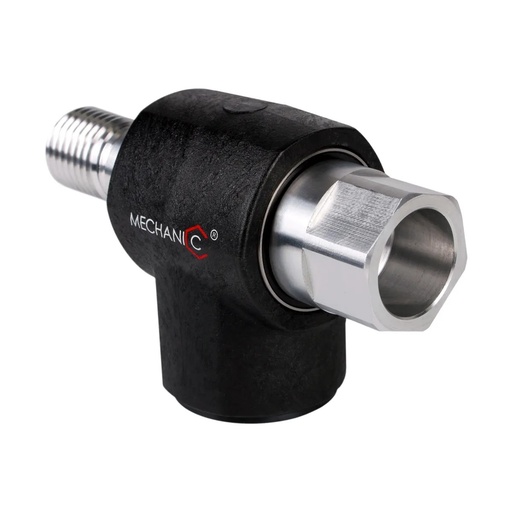

Distar DrillSTREAM 1 1/4 UNC x M18 – Clean Drilling Without the Mess

The DrillSTREAM is designed for near-total dust and debris collection during drilling, capturing up to 100 percent of dust and material fragments. Ideal for use with diamond drilling machines with micro-percussion, it keeps your workspace clean and safe.

Mounting instructions are available in the official video guide. For best performance, use with DISTAR RS-TX or RM-TX dry core drills.

In the context of the rapid development of construction technologies, the strength, reliability and high resistance of new concrete to various external factors greatly complicate the work of drilling and cutting. Diamond drills DDS-W DLD RS8-X are designed to easily solve extra-heavy tasks. DIAFIX technology ensures consistent performance at all stages of operation. The special shape of the segment is designed for quick and comfortable drilling into the material. The composition of the diamond-bearing layer is specially designed for high-performance drilling of powerful reinforced concrete. Production on modern equipment for laser welding of segments ensures the reliability and resistance of the tool to harsh operating conditions. RS8-X drills easily cope with any configuration of metal reinforcement of concrete structures. RS8-X is used for working on diamond drilling rigs with water supply. Do you have heavy concrete? We have a solution - RS8-X!

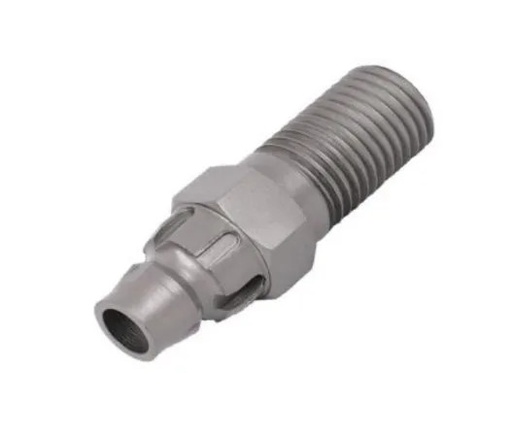

The adapter is suitable for diamond drill units DD 130/150/160.

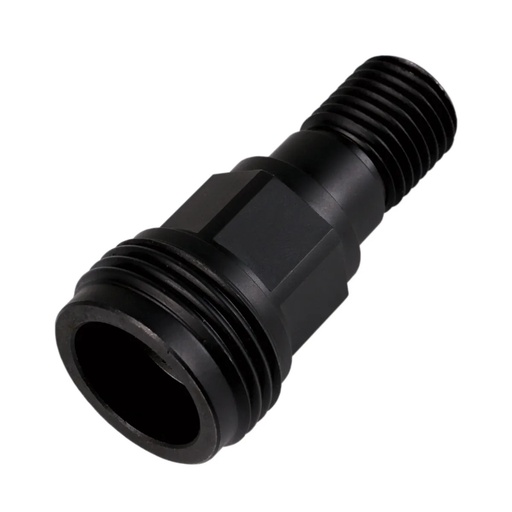

The adapter is suitable for diamond drill units DD 200/350.

The adapter is suitable for diamond drill units DD 130/150/160.

SocketDUSTER
Clean drilling

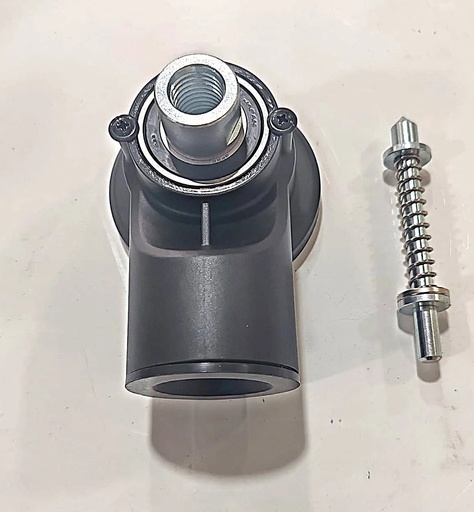

Distar SocketDuster 68-82 – Clean and Cost-Effective Socket Drilling

The Distar SocketDuster 68-82 is a price-oriented dust collector designed for socket drilling with core diameters from 68 to 82 mm. It captures up to 95 percent of dust, keeping your workspace clean and reducing cleanup time.

Best used with DISTAR CS-X, RS-X, or Krone PRO socket drills. For effective dust extraction, make sure the drill core has a rear-side dust outlet.

DDR S10 Keramik Pro
Every year the range of hard, frost-resistant porcelain tiles is expanding, the processing of which is becoming more and more complicated. For cutting and drilling such materials, you need a high-speed tool.
Vacuum drill bits Keramik Baumesser Pro are high-speed drill bits for all types of ceramics and porcelain tiles. High-strength diamond, fixed in a solid bond, forms developed cutting micro-cutters that effectively penetrate the ceramic material.
The drill bits with a shank S10 used on drills, hammer drills in drill mode, and electric screwdrivers.
For best results, it is recommended to set the maximum speed.
Chuck clamp diameter: not less than 12 mm

Bar diameter 30mm

300+ Holes in Porcelain Stoneware with an Angle Grinder
If you are a fan of dry drilling in porcelain stoneware, you know that the average lifespan of drill bits is about 50 holes. Moreover, not all core bits can handle thick porcelain stoneware of 20 mm.

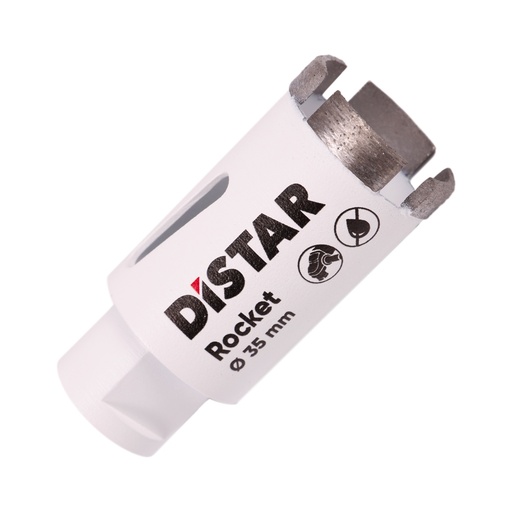

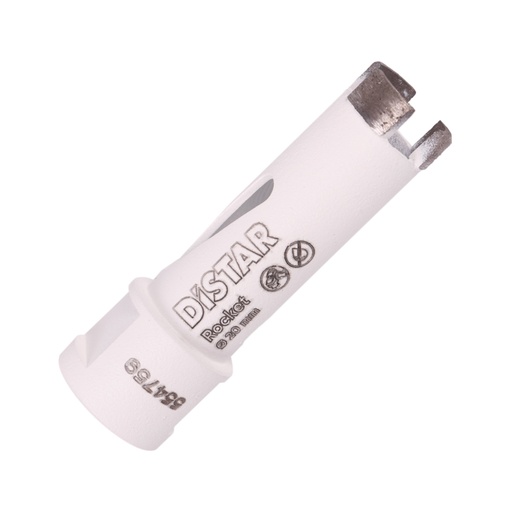

The Rocket segmented drill bit is a powerful tool for the most challenging tasks. It features sintered diamond segments securely attached to the body through laser welding.
The Rocket drill bit quickly creates holes even in 20 mm porcelain stoneware and granite up to 50 mm thick. This durable drill bit lasts for more than 300 holes in 10 mm porcelain stoneware.
The Rocket drill bit will solve most of your tasks for a long time.
Drill bits are available in outer diameters of 20, 35, 45, 50, 55, 65, 68 mm. They have a length of 45 mm and are used on angle grinders without cooling at maximum speeds of 3000 RPM. For optimal dust removal, use the DrillDuster 82 from Mechanic.

Blue Wind Series from BYCON delivers unmatched drilling velocity. Precision engineered for maximum aggression, utilizing a specialized diamond powder formula designed to bite through reinforced materials with ease.

Core advantages:
Aggressive cutting speed due to proprietary diamond blend, ensuring rapid penetration through the toughest aggregates.
Rebar-Optimized specifically tuned to maintain efficiency when intersecting heavy steel reinforcement.
Heavy-Duty purposes, thickened steel tube providing extra rigidity for deep or high-pressure drilling

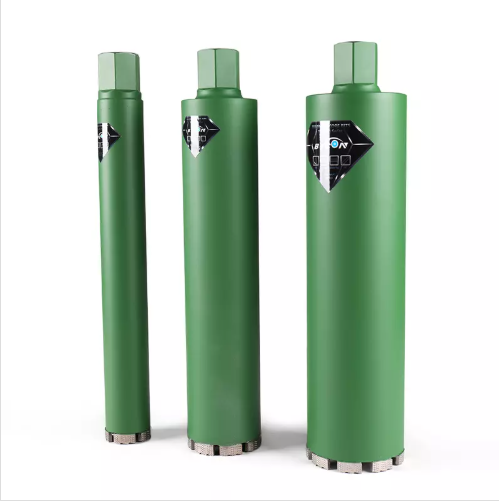

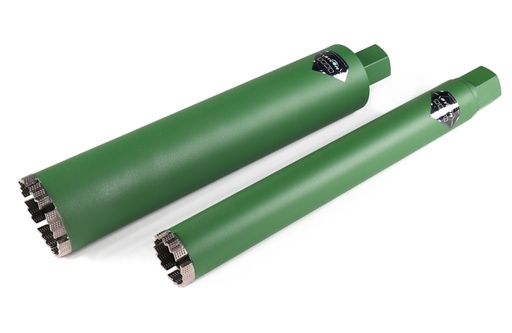

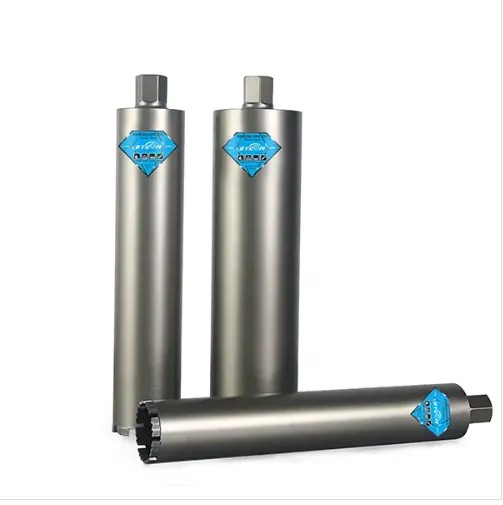

Tornado series is BYCON's flagship line for heavy-duty structural drilling.

Core advantages:
Advanced laser-welded segments that provide structural integrity and operator safety.
Extended tool life due to optimized geometry, ensuring the bit stays sharper for longer.
Engineered to flush out slurry efficiently, preventing jams and overheating.

Professionals know how long and difficult it can be to drill holes in dry mode, especially in strong reinforced concrete. This happens because the diamond segments become dull. The diamond breaks down, gets pressed into the surface, and the gaps between the diamonds fill with metal or worn-out material. As a result, the drilling speed drops significantly, and the temperature in the drilling area rises. The drill bit may fail.
In such cases, the diamond segment surface needs to be restored, or in other words, the drill bit needs to be 'sharpened.'

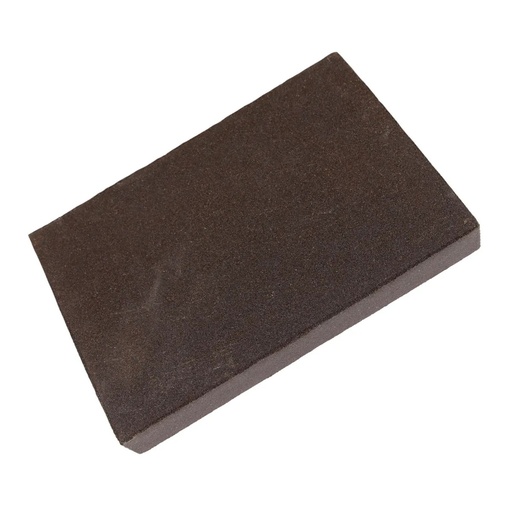

The best way to do this is with the DrillSHARP Mechanic abrasive plate. Simply drill 1–3 times into the abrasive plate to the height of the segment, and the drill bit becomes sharp again, just like new.
For example, when drilling a 100 mm diameter hole in a 200 mm thick concrete slab (B50 grade) with two 22 mm reinforcement bars in dry mode, the average drilling time is 30 minutes. However, after sharpening, this task can be completed in just 8 minutes—more than three times faster!
Imagine how much easier and faster your work will be now.
This method allows you to sharpen drill bits of various diameters for both dry and wet drilling. It works for socket drills, ventilation, air conditioning, and other applications.
The abrasive plate dimensions are 300x200x40 mm. It can be used on both sides, utilizing the entire surface.

Bar diameter 30mm

Bar diameter 30mm

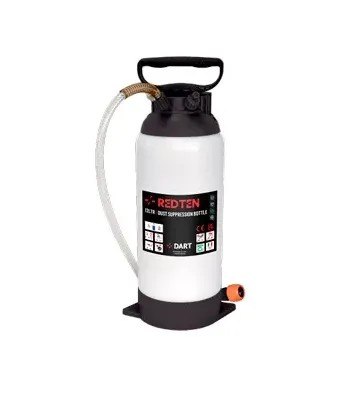

A pressurised water bottle specifically designed for dust suppression to provide a safer working environment. 12Ltr Capacity fits most radial cut-off machines Used for dust suppression when cutting marble, ceramic, stone, brick, concrete etc
