FIND YOUR CORE BIT

The thread is the whole game here: nearly every rig we sell is 1-1/4 inch UNC, and a bit on the wrong thread is a bit you cannot use. Start with what you are drilling with and the 33 bits, adapters and extensions narrow to the ones that will actually go on.

1 What does it screw onto? Read it off the machine spindle; adapters below bridge the rest

1-1/4 inch UNC Nearly every core rig in the range 1/2 inch GAS or BSP Handheld rigs; adapts to UNC SDS-plus Rotary hammer, not a core rig M14 Angle grinder M16 Paddle mixer thread Drill chuck Round shank, an ordinary drill

2 Bit, adapter or extension? A bit cuts, an adapter marries threads, an extension reaches deeper

Core bit The bit that cuts the hole

Thread adapter Marries a bit to a different spindle

Extension Drills deeper than the bit is long

Cutter or extra Cone cutters, pullers, drift keys

3 How big a hole? Bits only - adapters and extensions carry no bore size

Up to 32 mm Fixings, starter bars, resin anchors 35 to 82 mm Sockets, conduit, small services 92 to 152 mm Soil pipe, vents, ducting 162 mm and up Large cores, manholes, kerb

Need the machine as well as the bit? Core drilling machines and stands ->

4 ITEMS FIT matched from your choices Reset choices

WET

Diamond Core Drill DLD RS7X(r) ∅32-300mm x 450mm

ADTnS

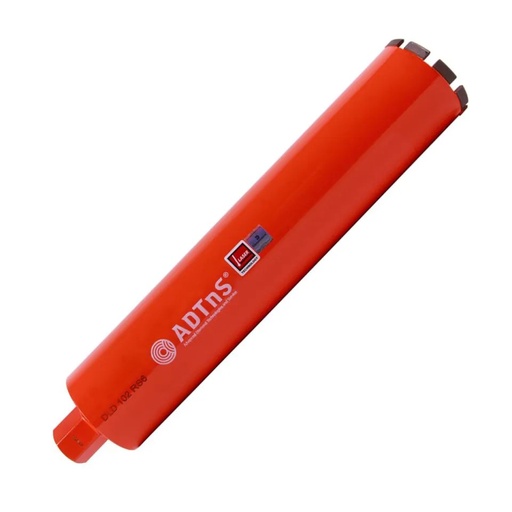

ADTnS DDS-W DLD RS7X(r) ∅32-500mm Diamond Core Drill Bit (∅ 182mm)

Segment-oriented diamond. High-performance speed of drilling in difficult conditions. The possibility of filing a small amount of water.

EUR 40.48EUR 49.79ex VATinc VAT~~was EUR 50.60EUR 62.24~~

WET

Distar

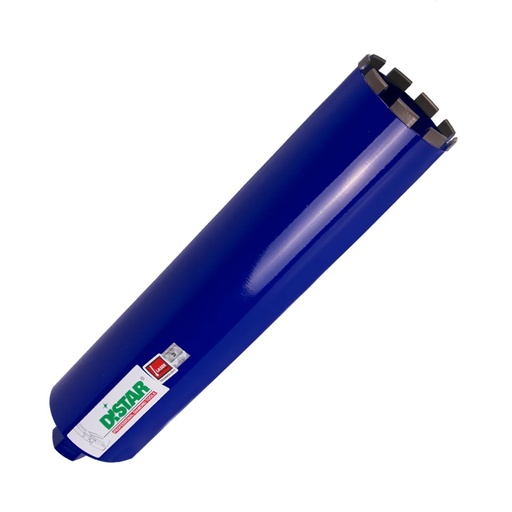

Distar DDS-W Reinforced Concrete ∅32-302mm Diamond Core Drill Bit (∅ 200mm)

Diamond drill bit DDS-W 1 1/4 UNC Reinforced Concrete is an ideal tool for working with low-abrasive materials, as well as highly reinforced concrete. Provides stable work even with heavy reinforcement.
Available in number of diameters from 32 to 500 millimeters. The length of the working area of the drill bit is 450 mm. There is a difference in the number of segments depending on the diameter, which is from 4 to 30.
Depending on its diameter, it provides a speed of 5 to 7 centimeters per minute, with a lifetime of 9.5 to 12.5 meters.
The diamond drill is positioned as a tool with a great lifetime and good speed.

EUR 34.94EUR 42.98ex VATinc VAT~~was EUR 43.68EUR 53.73~~

DRY

ADTnS

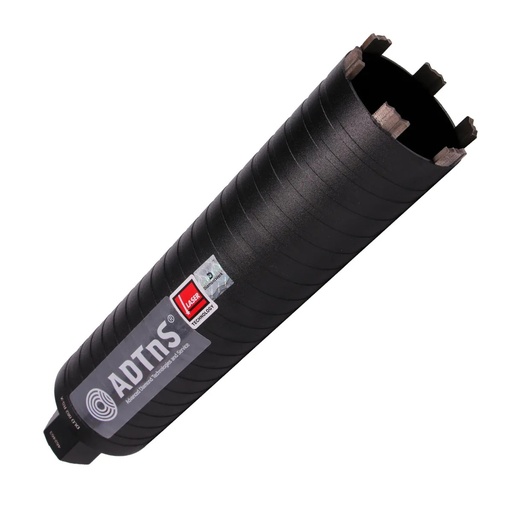

ADTnS DDS-W DLD RS-TX ∅52-152mm Diamond Core Drill Bit (∅ 32mm)

Faster than ever
Core drilling in the concrete wall for conditioning installment, ventilation, or other communication lines without coolant is a very difficult and time-consuming process. Manufacturers and masters often work and have been looking for methods how to improve working speed.
Nowadays the RS-TX drill is the quickest drilling tool in dry mode, developed especially for micro-percussion drilling machines. The drill bit’s screwed body effectively removes sludge from the drilling zone. The diamond segments, laser welded to the steel core, have turbo form with a high-strength and arranged diamonds. Drilling speed of 82 mm hole in B35 concrete with 20 cm thickness reaching in 2,5 minutes without coolant.
The drill bit installing into drilling machines with micro-percussion. It has a 300 mm length and 1 1/4 UNC shank.
It produced in following diameters: 42, 52, 62, 72, 82, 102, 112, 122, 132, 142, 152, 162, 172, 182, 200 mm
Characteristics of a drilling machine:
Rotation frequency 1100-2100 rpm.
Strike rating 0.25 - 0.5 mm.
Number of bits: 28000-45000 bpm
Power: 1,8 – 3,0 kW.
Dust collector 19568442025 MECHANIC DrillSTREAM 1 1/4 UNC x М18 and connector adaptor 01419031021 1 1/4UNC(in)xM18(out) are also used with a drill bit.
The RS-TX drill bit is an excellent solution for rooms with renovations where water cannot be used.

EUR 42.94EUR 52.82ex VATinc VAT~~was EUR 53.68EUR 66.03~~

WET

ADTnS

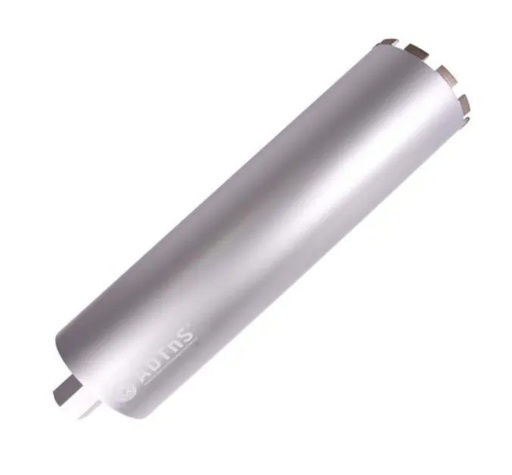

ADTnS DDS-W DLD RS8X ∅42-300mm Diamond Core Drill Bit (∅ 350mm)

In the context of the rapid development of construction technologies, the strength, reliability and high resistance of new concrete to various external factors greatly complicate the work of drilling and cutting. Diamond drills DDS-W DLD RS8-X are designed to easily solve extra-heavy tasks. DIAFIX technology ensures consistent performance at all stages of operation. The special shape of the segment is designed for quick and comfortable drilling into the material. The composition of the diamond-bearing layer is specially designed for high-performance drilling of powerful reinforced concrete. Production on modern equipment for laser welding of segments ensures the reliability and resistance of the tool to harsh operating conditions. RS8-X drills easily cope with any configuration of metal reinforcement of concrete structures. RS8-X is used for working on diamond drilling rigs with water supply. Do you have heavy concrete? We have a solution - RS8-X!

EUR 40.80EUR 50.18ex VATinc VAT~~was EUR 51.00EUR 62.73~~
