Professional drilling in electrical installation.
The ADTnS DLD CS-X diamond drill bit is designed for drilling holes for the installation of electrical outlets. This drill bit effectively works when drilling reinforced, non-reinforced concrete, foam concrete, brick.
Equidistant evenly distributed diamond in segments provides high-performance and stable drilling speed.
The diamond drill bit is used on all types of handheld electric drills with adjustable speed and hammer drills.
Available in 3 diameters: 68, 72 and 82 mm on the market. They can be equipped with a magnetic adapter Magnet or without it.
The magnetic drill adapter allows you to quickly remove the centering drill bit, which significantly increases the overall performance of the work.
It is recommended to use such drills on a hand tool with a power of at least 650 W

Segment-oriented diamond. High-performance speed of drilling in difficult conditions. The possibility of filing a small amount of water.

Diamond crown drill bit with an optimal speed and lifetime ratio.
For drilling reinforced concrete and bricks.
Used on diamond drilling machines.
Mandatory use of water coolant.
The ring segment with grooves is attached to the steel core by silver brazing.
The drill bit is manufactured in a diameter range of 10 mm-35 mm with length of 150, 320 or 450 mm, and a 1/2 GAS shank
It is recommended to slow down the drill bit rotation speed when passing the reinforcement.
Follow the recommendations for water coolant supply intensity.
The drill bit can be retipped at specialized service centers.

Diamond drill bit Distar DDS-W T-Concrete is designed for drilling holes for further socket installation. Suitable for working with surfaces of non-reinforced and reinforced concrete, as well as bricks.
The drill bits are used in combination with any type of manual electric drills with adjustable speed and hammer drill. Available in three diameters – 68, 72 and 82 millimeters. They can also be equipped with a magnet adapter. It is recommended to use the drill bits on a hand-held machine with a power of at least 650 W.

Diamond drill bit DDS-W 1 1/4 UNC Reinforced Concrete is an ideal tool for working with low-abrasive materials, as well as highly reinforced concrete. Provides stable work even with heavy reinforcement.
Available in number of diameters from 32 to 500 millimeters. The length of the working area of the drill bit is 450 mm. There is a difference in the number of segments depending on the diameter, which is from 4 to 30.
Depending on its diameter, it provides a speed of 5 to 7 centimeters per minute, with a lifetime of 9.5 to 12.5 meters.
The diamond drill is positioned as a tool with a great lifetime and good speed.

Diamond core bit DISTAR DDR-B GRANITE ACTIVE is a great helper to create holes of different diameters in ceramic surfaces. Most effectively shows itself in work with soft and hard ceramic tiles, as well as marble and ceramic granite. When drilling, it creates a clean edge, without damaging the general appearance of the material.
The drill bit is available in various diameters, from 6 to 46 millimeters.
The drill bit is equipped with a special shank, under the clamping chuck, which allows you to use the tool on the handheld drills. The mandatory condition for the operation is the power of the drill from 600W, the presence of a speed controller from 800 to 2000 rpm and the absence of hammer mode.
Due to the durable diamond layer, it allows to achieve maximum working speed and lifetime. Requires water cooling during drilling.

300 holes in porcelain stoneware. The most profitable drill.
Drills for porcelain stoneware holes on the market are manufactured using electroplating or vacuum deposition. Their main disadvantage is their short service life, often only 3-5 holes.
The new 70 Ceramics sintered drill bit has a life of approximately 300 holes in hard porcelain stoneware.
Shallow turbo grooves in the diamond segments provide high drilling speeds while maintaining the desired edge quality with minimal chipping.
The diamond segments on the body are laser-fixed, ensuring high reliability of the drill.
The drill has an outer diameter of 70 mm for drilling holes for sockets. Used on drills or screwdrivers with a power of 0.8-1.5 kW and a rotation speed of 900-1300 rpm.
Mandatory use of water for cooling. It is equipped with a foam sponge that acts as a water accumulator, which is displaced as it penetrates into the material.

Steel extensions for drills with 1 1/4 UNC connection

Features DiStar DDS-W T-Concrete Box Drill Dry for Concrete 82mm M16


With its ability to work on substrates ranging from reinforced to unreinforced concrete and brick, this drill is an essential tool for any electrician.
Wide range of applications - Suitable for reinforced and unreinforced concrete as well as brick, giving the user great versatility.

Flexibility - Can be used with any type of adjustable speed electric drill and hammer drill.

Magnetic adapter - A magnetic adapter can be added for additional functionality and ease of use.

Power requirements - These drills are designed for handheld machines with a minimum power of 650W, meaning they are robust enough for heavy-duty tasks.

Dry cooling - The drill is designed for dry cooling, which extends the life of the drill and reduces the risk of overheating.

Brand consistency - With the Distar brand, you can count on consistent product quality and reliability.

Technical specifications
Diameter - 82
Length - 65
Cooling - Dry
Shank type - М16
Application - Brick, concrete
Brand - Distar
Scope of delivery
DiStar DDS-W T-concrete box drill dry for concrete 82mm M16

Diamond drill DDR-B 025x450-1x1 1/4 UNC Reinforced concrete is designed for drilling holes in highly reinforced, reinforced concrete, brick and other building materials.

It is used on drilling rigs with a capacity of up to 2.2 kW both on racks and in manual mode. It has a high speed of passing heavy reinforced concrete.

When passing the armature, it is recommended to reduce the speed of rotation. Mandatory application of cooling with running water.

The drill is 450 long, 1/4 UNC seat. With the help of extensions, you can increase the drilling depth to several meters

Outer thread 1 1/4 UNC, outer thread 1/2 GAS.

The adapter uses an external M16 thread to convert to an SDS shank, used for hammer drills with an SDS Plus quick-release chuck.

The adapter uses a 1 1/4' UNC male thread to convert to a 1/2 GAS male thread. Can be used on drills with a 1/2 GAS spindle to use drills with 1 1/4' UNC fasteners

Faster than ever
Core drilling in the concrete wall for conditioning installment, ventilation, or other communication lines without coolant is a very difficult and time-consuming process. Manufacturers and masters often work and have been looking for methods how to improve working speed.
Nowadays the RS-TX drill is the quickest drilling tool in dry mode, developed especially for micro-percussion drilling machines. The drill bit’s screwed body effectively removes sludge from the drilling zone. The diamond segments, laser welded to the steel core, have turbo form with a high-strength and arranged diamonds. Drilling speed of 82 mm hole in B35 concrete with 20 cm thickness reaching in 2,5 minutes without coolant.
The drill bit installing into drilling machines with micro-percussion. It has a 300 mm length and 1 1/4 UNC shank.
It produced in following diameters: 42, 52, 62, 72, 82, 102, 112, 122, 132, 142, 152, 162, 172, 182, 200 mm
Characteristics of a drilling machine:
Rotation frequency 1100-2100 rpm.
Strike rating 0.25 - 0.5 mm.
Number of bits: 28000-45000 bpm
Power: 1,8 – 3,0 kW.
Dust collector 19568442025 MECHANIC DrillSTREAM 1 1/4 UNC x М18 and connector adaptor 01419031021 1 1/4UNC(in)xM18(out) are also used with a drill bit.
The RS-TX drill bit is an excellent solution for rooms with renovations where water cannot be used.

Contour PRO 25/10.
Strictly along the contour!
When decorating rooms with tiles, often it is necessary to make a hole. But at hand is no drill bit of the desired diameter for this. The contour finger grinding bit Baumesser Contour Pro for ceramics and porcelain gres comes to help. You can expand the holes to the desired diameter with this grinding bit. There is no need to keep a whole set of drills. It is also possible to efficiently process curved surfaces along a given contour.
This unique grinding bit has two working diameters of 10 mm and 25 mm, which allows you to quickly expand the holes of small and large diameters. Moreover, due to the radius fillets, it is possible to effectively remove chamfers, correct the edge of the tile.
The grinding bits are made using vacuum sintering technology, high-strength diamond is used. Grinding is fast and productive. The grinding bit has a seat M14. It is mounted on the angle grinder. It works on an angle grinder in dry mode at maximum speed.

In the context of the rapid development of construction technologies, the strength, reliability and high resistance of new concrete to various external factors greatly complicate the work of drilling and cutting. Diamond drills DDS-W DLD RS8-X are designed to easily solve extra-heavy tasks. DIAFIX technology ensures consistent performance at all stages of operation. The special shape of the segment is designed for quick and comfortable drilling into the material. The composition of the diamond-bearing layer is specially designed for high-performance drilling of powerful reinforced concrete. Production on modern equipment for laser welding of segments ensures the reliability and resistance of the tool to harsh operating conditions. RS8-X drills easily cope with any configuration of metal reinforcement of concrete structures. RS8-X is used for working on diamond drilling rigs with water supply. Do you have heavy concrete? We have a solution - RS8-X!

The adapter is suitable for diamond drill units DD 130/150/160.

The adapter is suitable for diamond drill units DD 200/350.

The adapter is suitable for diamond drill units DD 130/150/160.

DDR S10 Keramik Pro
Every year the range of hard, frost-resistant porcelain tiles is expanding, the processing of which is becoming more and more complicated. For cutting and drilling such materials, you need a high-speed tool.
Vacuum drill bits Keramik Baumesser Pro are high-speed drill bits for all types of ceramics and porcelain tiles. High-strength diamond, fixed in a solid bond, forms developed cutting micro-cutters that effectively penetrate the ceramic material.
The drill bits with a shank S10 used on drills, hammer drills in drill mode, and electric screwdrivers.
For best results, it is recommended to set the maximum speed.
Chuck clamp diameter: not less than 12 mm

Make your diameter!

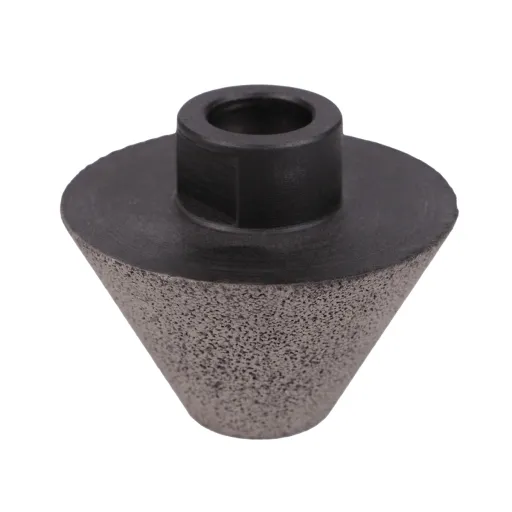

Sometimes it becomes necessary to increase the diameter of the finished hole in porcelain gres. DISTAR Cone is exactly for such work.
CONE diamond vacuum cutters have a tapered design. It is possible to process holes of a wide range of diameters with one cutter, as well as create facets and dull the sharp edges of the hole.
The cutter has M14 for installation on the angle grinder. Used in dry mode.

Bar diameter 30mm

300+ Holes in Porcelain Stoneware with an Angle Grinder
If you are a fan of dry drilling in porcelain stoneware, you know that the average lifespan of drill bits is about 50 holes. Moreover, not all core bits can handle thick porcelain stoneware of 20 mm.
The Rocket segmented drill bit is a powerful tool for the most challenging tasks. It features sintered diamond segments securely attached to the body through laser welding.
The Rocket drill bit quickly creates holes even in 20 mm porcelain stoneware and granite up to 50 mm thick. This durable drill bit lasts for more than 300 holes in 10 mm porcelain stoneware.
The Rocket drill bit will solve most of your tasks for a long time.
Drill bits are available in outer diameters of 20, 35, 45, 50, 55, 65, 68 mm. They have a length of 45 mm and are used on angle grinders without cooling at maximum speeds of 3000 RPM. For optimal dust removal, use the DrillDuster 82 from Mechanic.

Blue Wind Series from BYCON delivers unmatched drilling velocity. Precision engineered for maximum aggression, utilizing a specialized diamond powder formula designed to bite through reinforced materials with ease.

Core advantages:
Aggressive cutting speed due to proprietary diamond blend, ensuring rapid penetration through the toughest aggregates.
Rebar-Optimized specifically tuned to maintain efficiency when intersecting heavy steel reinforcement.
Heavy-Duty purposes, thickened steel tube providing extra rigidity for deep or high-pressure drilling

Tornado series is BYCON's flagship line for heavy-duty structural drilling.

Core advantages:
Advanced laser-welded segments that provide structural integrity and operator safety.
Extended tool life due to optimized geometry, ensuring the bit stays sharper for longer.
Engineered to flush out slurry efficiently, preventing jams and overheating.

Bar diameter 30mm

Bar diameter 30mm
